Voice Coil Motors
Voice Coil Motor

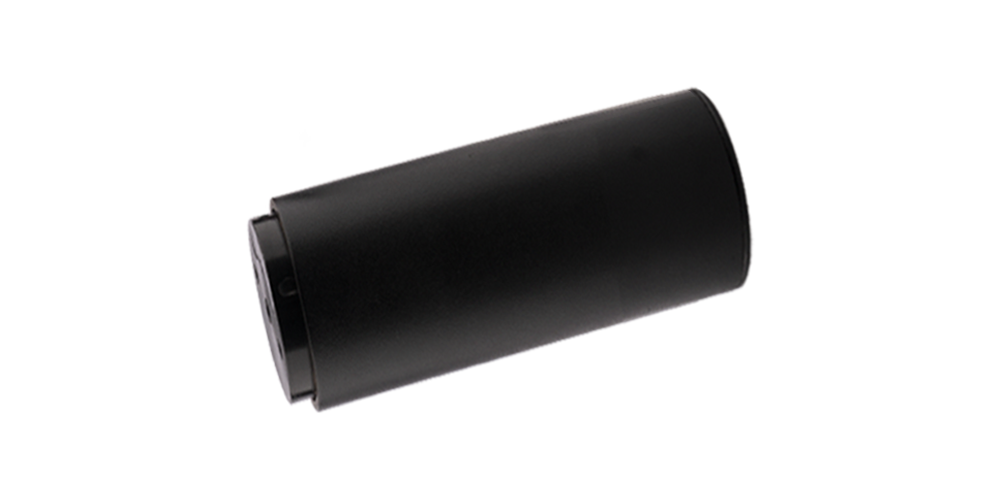

Size 45 mm Voice Coil Motor
High-force voice coil motor engineered for precision linear motion applications requiring rapid response, direct-drive control, and smooth force output over longer stroke lengths.
Motor Characteristics
High-Force Type
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) Middle Position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 50 | 19.1 | 19 | 1 | 120 | 19.1 | 14.03 | 6.45 | 0.5 | 100 | 324 | 1154 |
Dimensional Drawing
High-Force Type
Force Curve
High-Force Type
* This curve is the thrust curve under the rated current. Thrust is affected by current changes.
Downloads
Part Number Builder
VC
-
HF
-
45
-
50
-
19
-
000
VC
Voice Coil Motor
HF
High-Force Series. Blank indicates Standard Series.
45
45 mm Frame Size
50
50 mm Stroke
19
19 N Continuous Force
PS
Position Sensor Option when applicable
000
Customer Sequence Number
Custom
Dimensions, mounting, stroke, and appearance can be customized.
