Voice Coil Actuator

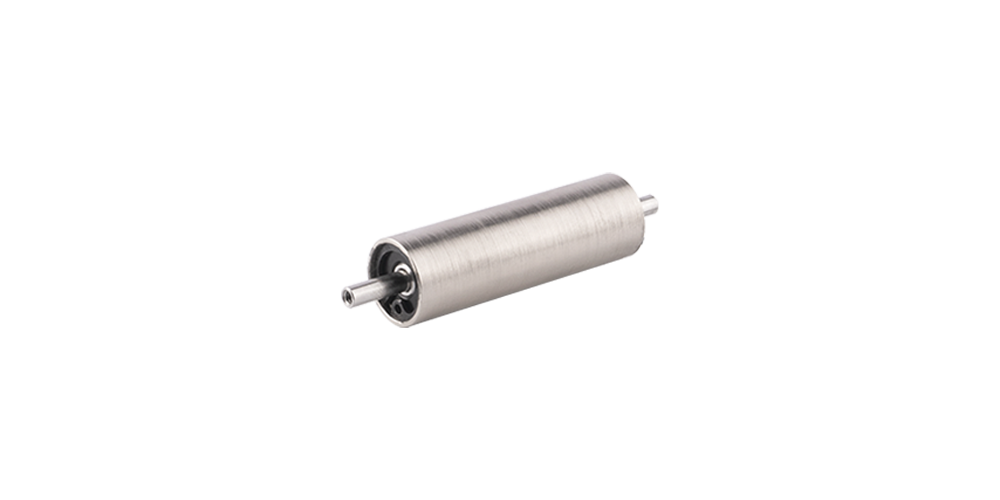

Size 13.2 mm Voice Coil Actuator
High-force voice coil actuator designed for compact, direct-drive linear motion applications requiring smooth force control, fast response, and short-stroke precision.
Motor Characteristics
High-Force Type
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) Middle Position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 13.2 | 3.8 | 3.2 | 2.2 | 0.7 | 6.7 | 3.2 | 3.5 | 0.25 | 0.4 | 100 | 12 | 49 |
Dimensional Drawing
High-Force Type
Force Curve
High-Force Type
* This curve is the thrust curve under the rated current. Thrust is affected by current changes.
Downloads
Part Number Builder
VC
-
HF
-
13.2
-
3.8
-
2.2
-
000
VC
Voice Coil Motor / Actuator
HF
High-Force Series. Blank indicates Standard Series.
13.2
13.2 mm Frame Size
3.8
3.8 mm Stroke
2.2
2.2 N Continuous Force
PS
Position Sensor Option when applicable
000
Customer Sequence Number
Custom
Dimensions, mounting, stroke, and appearance can be customized.
