VOICE COIL MOTORS > 60MM
Voice Coil Motors
Voice Coil Motor

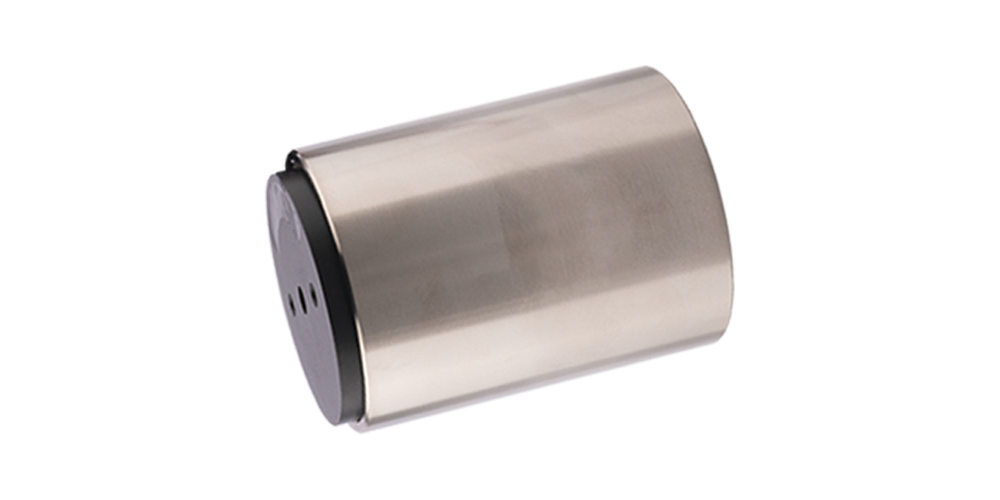

Size 60 mm Voice Coil Motor
High-force voice coil motor designed for direct-drive linear motion applications requiring smooth force output, responsive movement, and precise short-stroke control.
Motor Characteristics
High-Force Type
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) Middle Position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 60 | 15 | 36.66 | 44 | 1.2 | 182 | 36.66 | 10.57 | 3.67 | 0.7 | 100 | 251 | 1183 |
Dimensional Drawing
High-Force Type
Force Curve
High-Force Type
* This curve is the thrust curve under the rated current. Thrust is affected by current changes.
Downloads
Part Number Builder
VC
-
HF
-
60
-
15
-
44
-
000
VC
Voice Coil Motor
HF
High-Force Series. Blank indicates Standard Series.
60
60 mm Frame Size
15
15 mm Stroke
44
44 N Continuous Force
PS
Position Sensor Option when applicable
000
Customer Sequence Number
Custom
Dimensions, mounting, stroke, and appearance can be customized.
