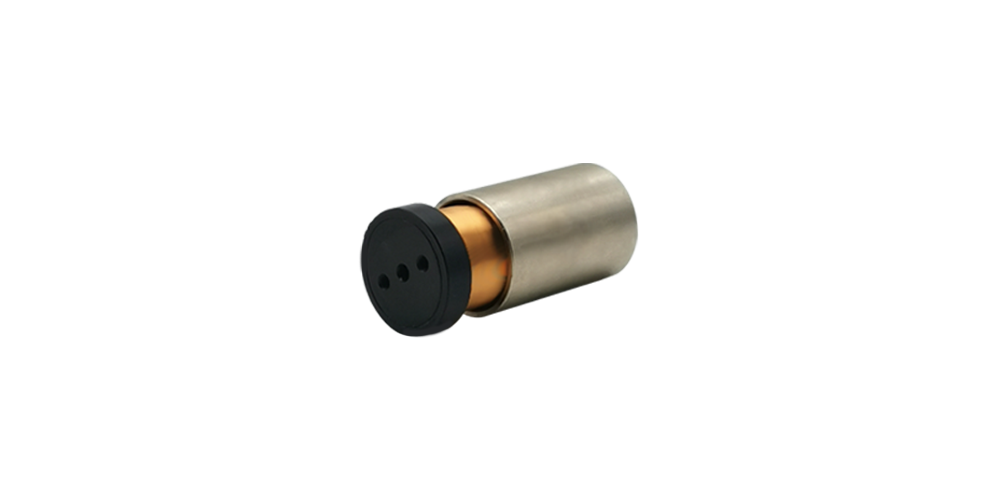

Size 30 mm Voice Coil Motor
Compact voice coil motor available in standard and high-force configurations for direct-drive precision motion applications requiring smooth force output and rapid response.
Motor Characteristics
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max Temp (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 13 | 7.35 | 4.63 | 0.63 | 29.4 | 7.35 | 11.34 | 2.63 | 0.6 | 100 | 25 | 96 |
| 30 | 15 | 7.35 | 4.63 | 0.63 | 29.4 | 7.35 | 11.35 | 2.63 | 0.6 | 100 | 25 | 96 |
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max Temp (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 5 | 11.87 | 9.5 | 0.8 | 65 | 11.87 | 10.15 | 2.24 | 0.5 | 100 | 41 | 158 |
| 30 | 12 | 9.12 | 13 | 1.5 | 80 | 9.12 | 5.21 | 1.9 | 0.5 | 100 | 64 | 190 |

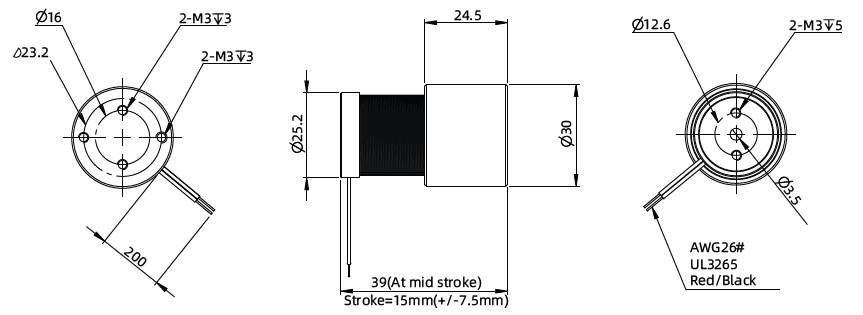

Dimensional Drawing
Force Curve
* These curves show thrust under rated current. Thrust is affected by current changes.
Downloads
Customizations
Voice coil motors can be customized to meet specific application requirements, including mechanical dimensions, electrical characteristics, performance targets, environmental needs, and feedback preferences.
Frame size, motor length, stroke length, mounting configurations, wire length, and connectors.
Voltage rating, current rating, inductance rating, and application-specific winding requirements.
Accuracy, holding force, output force, speed, and motion profile requirements.
Environmental protection, corrosion resistance, and application-specific durability requirements.
Encoders, Hall sensors, limit switches, and other position or motion feedback options.
Designed around your system requirements to simplify installation, improve fit, and support production needs.
Integrated Motion Solutions
Voice coil technology can be supplied as a component or integrated into a more complete motion solution with feedback, guidance, and stage-level mechanics designed around your application.
Voice Coil Motor · Actuator · Flat Type
Basic Linear Drive
- Direct drive structure
- Fast response
- Flexible design
Analog Linear Hall Sensor Type
Sensor Feedback Drive
- Position feedback
- Stable operation
- Easy control
Voice Coil Module
Integrated Module
- Guide and sensor integrated
- Precise positioning
- Modular design
Voice Coil Stage
Precision Positioning Stage
- High-speed response
- µm-level positioning
- For precision equipment
DINGS’ Motion USA can support custom stage-level solutions that combine voice coil motors, guidance, feedback, mounting, and application-specific integration.
Part Number Builder
Voice Coil Motor
High-Force Series. Blank indicates Standard Series.
30 mm Frame Size
Stroke length in mm
Continuous force value
Position Sensor Option when applicable
Customer Sequence Number
Dimensions, mounting, stroke, and appearance can be customized.
