VOICE COIL MOTORS > 38MM
Voice Coil Motors
Voice Coil Motor

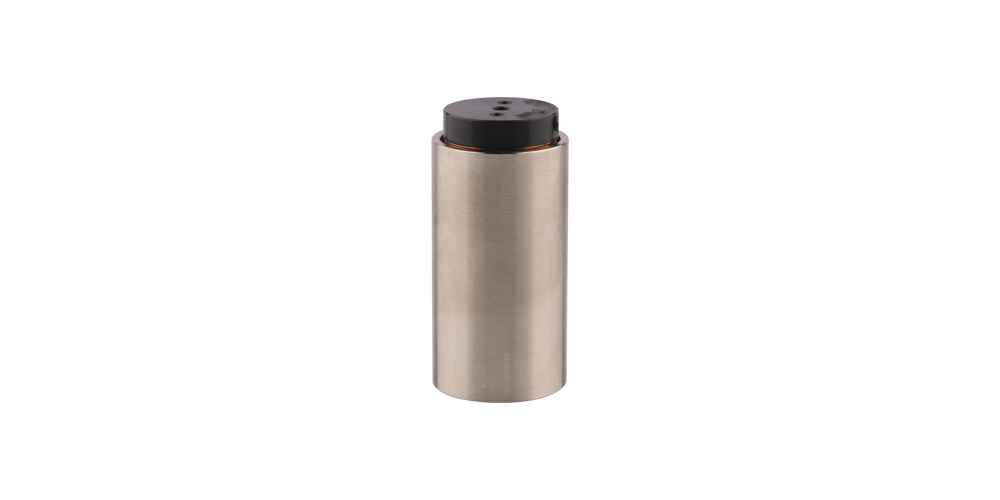

Size 38 mm Voice Coil Motor
High-force voice coil motor designed for precision linear motion applications requiring smooth direct-drive control, long stroke capability, and responsive force output.
Motor Characteristics
High-Force Type
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) Middle Position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 50 | 10.1 | 10 | 1 | 78 | 10.1 | 10.93 | 5.21 | 0.5 | 100 | 252 | 707.3 |
Dimensional Drawing
High-Force Type
Force Curve
High-Force Type
* This curve is the thrust curve under the rated current. Thrust is affected by current changes.
Downloads
Part Number Builder
VC
-
HF
-
38
-
50
-
10
-
PS
-
001
VC
Voice Coil Motor
HF
High-Force Series. Blank indicates Standard Series.
38
38 mm Frame Size
50
50 mm Stroke
10
Continuous Force Value
PS
Position Sensor Option
001
Customer Sequence Number
Custom
Dimensions, mounting, stroke, and appearance can be customized.
