VOICE COIL MOTORS > 12.7MM
Voice Coil Motors
Voice Coil Motor

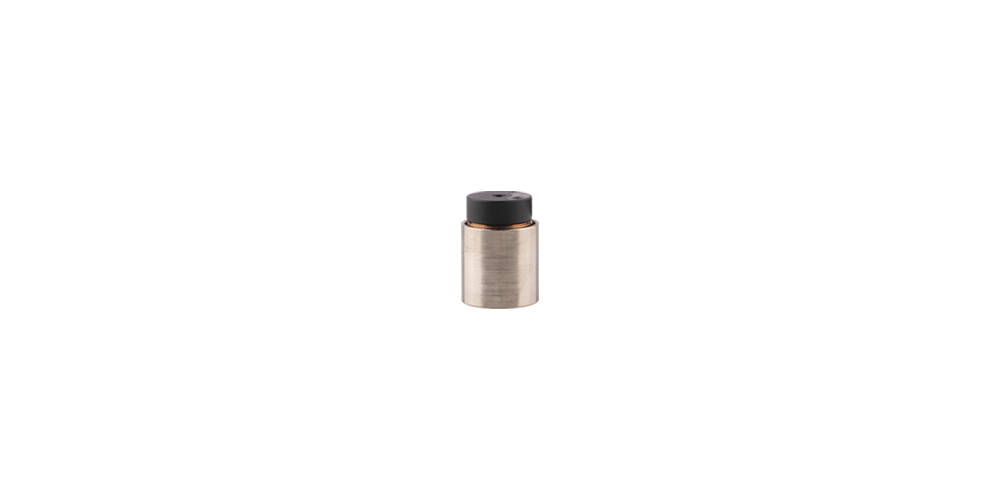

Size 12.7 mm Voice Coil Motor
Compact voice coil motor designed for direct-drive linear motion applications requiring fast response, smooth force output, and precise short-stroke movement.
Motor Characteristics
Standard Type
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) Middle Position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12.7 | 4 | 0.4 | 0.4 | 1 | 3.2 | 0.4 | 1.3 | 0.1 | 0.38 | 100 | 3 | 7.8 |
Dimensional Drawing
Standard Type
Force Curve
Standard Type
* This curve is the thrust curve under the rated current. Thrust is affected by current changes.
Downloads
Part Number Builder
VC
-
12.7
-
4
-
0.4
-
000
VC
Voice Coil Motor
12.7
12.7 mm Frame Size
4
4 mm Stroke
0.4
0.4 N Continuous Force
HF
High-Force Series. Blank indicates Standard Series.
PS
Position Sensor Option when applicable
000
Customer Sequence Number
Custom
Dimensions, mounting, stroke, and appearance can be customized.
