Voice Coil Motors
Voice Coil Actuator

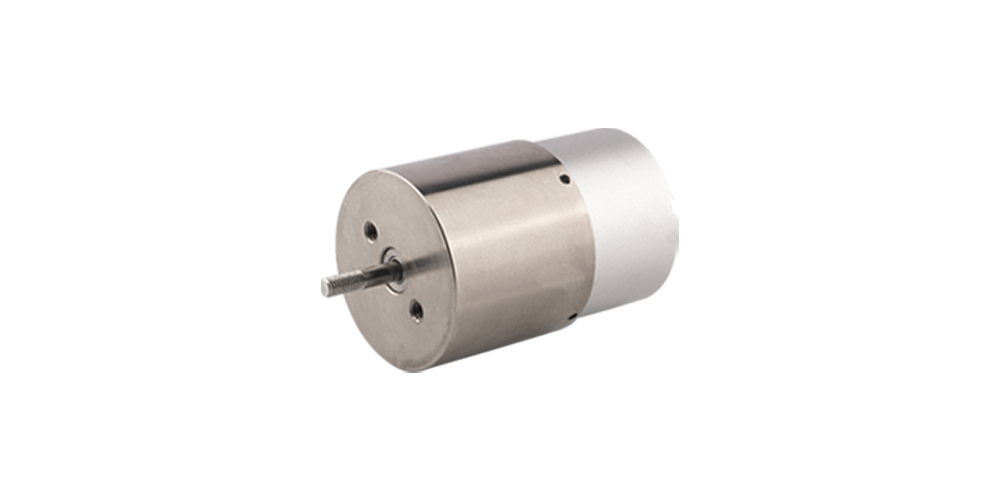

Size 40 mm Voice Coil Actuator
Standard voice coil actuator designed for direct-drive linear motion applications requiring smooth force control, responsive movement, and compact short-stroke precision.
Motor Characteristics
Standard Type
Swipe left or right to view the full table.
| Motor | Stroke (mm) |
Back EMF Constant (V/m/s) |
Continuous Force (N) |
Continuous Current 100℃ (A) |
Peak Thrust Force (N) |
Force Sensitivity (N/A) Middle Position |
Resistance (Ω) |
Inductance (mH) |
Coil Gap (mm) |
Coil Max. Temperature (℃) |
Coil Assembly Mass (g) |
Body Assembly Mass (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 6 | 11 | 11 | 1 | 40 | 11 | 5 | 1.32 | 0.5 | 100 | 48 | 244 |
Dimensional Drawing
Standard Type
Force Curve
Standard Type
* This curve is the thrust curve under the rated current. Thrust is affected by current changes.
Downloads
Part Number Builder
VC
-
HF
-
40
-
6
-
11
-
PS
-
000
VC
Voice Coil Motor / Actuator
HF
High-Force Series. Blank indicates Standard Series.
40
40 mm Frame Size
6
6 mm Stroke
11
11 N Continuous Force
PS
Position Sensor Option when applicable
000
Customer Sequence Number
Custom
Dimensions, mounting, stroke, and appearance can be customized.
