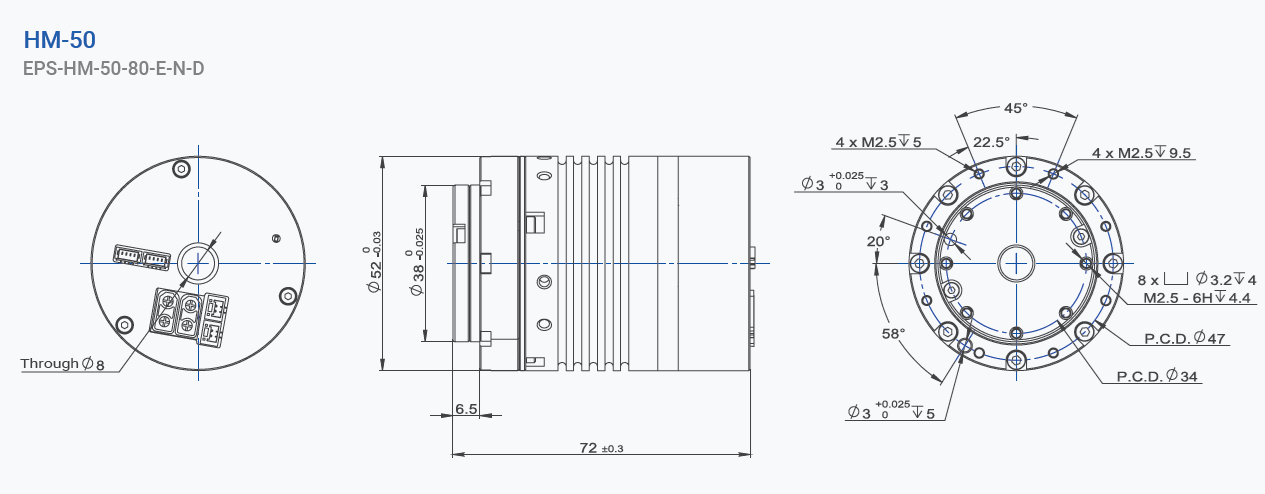

MyActuator HM-50 Strain Wave Mini Actuator (CAN)
The HM-50 is a compact rotary actuator with strain wave gear for robotic joints and precision motion applications.

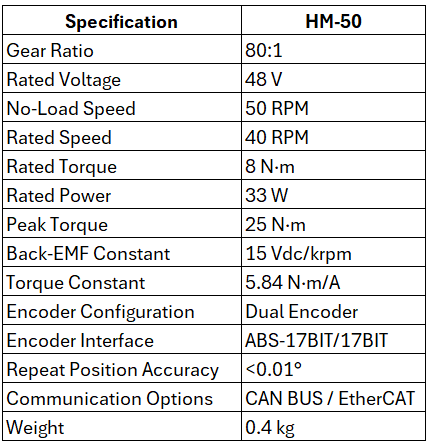

Operating at 48 V with an 80:1 gear ratio, it delivers 8 N·m rated torque and up to 25 N·m peak torque.
Dual 17-bit absolute encoders and repeat positioning accuracy of less than 0.01° provide precise positioning in a lightweight, 0.4 kg package.
