Lead Screw Nut Assemblies
Explore lead screw nut options for OEM linear motion systems that need simple integration, cost-efficient motion control, custom material options, and reliable performance across compact electromechanical assemblies.
Simple Linear Motion
Cost-effective travel
Nut Style Options
Free-wheeling & anti-backlash
Material Choices
POM, PBT, PPS, PA66, bronze
Custom Support
Built around your system
Lead Screw Nut Assemblies
Choose from free-wheeling lead screw nuts, circular flange styles, triangle flange styles, and torsion or compression spring anti-backlash nut configurations.
CS Circular Flange
CTS Circular Flange
CTA Circular Flange
CTC Circular Flange
TTA Triangle Flange

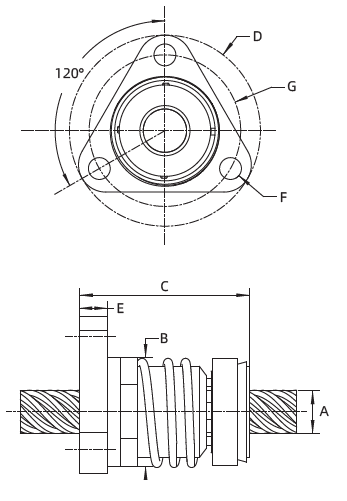

TC Triangle Flange
TTB Triangle Flange
Custom Lead Screw Solutions — Built Around Your Application
DINGS’ Motion USA offers standard and custom lead screw nuts for OEM systems that require reliable linear motion, controlled cost, flexible mounting, and application-specific material selection.
Our lead screw nut options can be tailored around fit, friction, wear life, backlash control, and operating environment.
Material Options
Available materials include POM, PBT, PPS, PA66, and bronze to support different wear, friction, strength, temperature, and application requirements.
Free-Wheeling Nuts
Free-wheeling nut options provide simple, cost-effective motion for applications where low complexity, straightforward installation, and reliable travel are priorities.
Anti-Backlash Options
Torsion and compression spring anti-backlash nut styles are available for applications that need reduced play, improved repeatability, and more controlled positioning.
When to Use a Lead Screw
Lead screws are often preferred when an application prioritizes simplicity, cost efficiency, controlled motion, and reliable positioning without the added complexity of a ball screw.
Cost Efficiency Is a Priority
Lead screws provide a lower-cost solution compared to ball screws, making them ideal for applications where budget constraints are a key factor.
Self-Locking Is Beneficial
Due to higher friction, many lead screw systems can help hold position without continuous power, which is useful in vertical or load-holding applications.
Moderate Speed & Duty Cycle
Lead screws perform well when applications do not require high speeds or continuous operation, helping reduce system cost and complexity.
Simple, Quiet Operation
With fewer components and no recirculating balls, lead screws can provide quieter operation and a more straightforward mechanical design.
Use lead screws when controlled motion, simple installation, lower cost, and moderate precision are more important than maximum efficiency or speed.
Resources
Review lead screw dimensions and product catalog information for standard and custom lead screw nut assemblies.
Need help selecting or customizing a lead screw nut?
Work with DINGS’ Motion USA to compare lead screw nut styles, review material options, select anti-backlash configurations, or discuss a custom nut solution for your OEM motion system.
