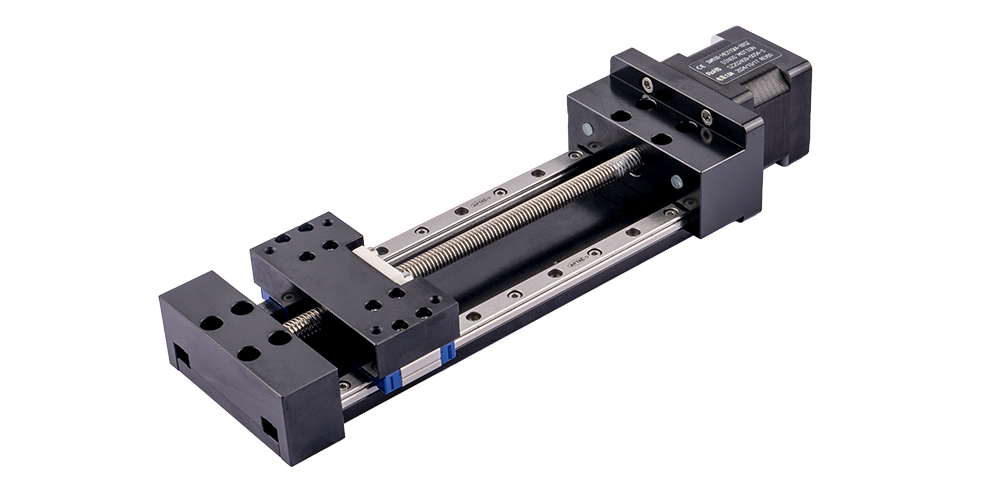

NEMA 17 DWM 42 MM Slide Actuator
The NEMA 17 DWM Series slide actuator is a 42 mm wide guided linear module that combines a stepper motor, lead screw, and wide-body slide structure into one ready-to-integrate motion solution.
Designed for OEM systems, the DWM 42 mm series offers flexible lead screw options, multiple stroke selections, and guided linear motion for automated positioning applications.
NEMA 17 DWM Wide Slide Actuator Overview
The DWM Series is a guided linear slide actuator platform for compact automation applications that require a motorized linear module with integrated guidance. The NEMA 17 / 42 mm version is suited for guided motion axes that need a larger frame size, flexible lead screw selection, and standard stroke options up to 500 mm.
Motor Characteristics
Swipe left or right to view the full table.
| Motor | Voltage [V] | Current [A RMS] | Resistance [Ω] | Inductance [mH] | Lead Wire No. | Motor Length [mm] |
|---|---|---|---|---|---|---|
| 17E2105 | 7.2 | 0.5 | 14.4 | 19.8 | 4 | 34.1 |
| 17E2110 | 3.8 | 1 | 3.8 | 5 | 4 | 34.1 |
| 17E2115 | 2.85 | 1.5 | 1.9 | 2.2 | 4 | 34.1 |
| 17E2205 | 11 | 0.5 | 22 | 46 | 4 | 48.1 |
| 17E2212 | 4.5 | 1.2 | 3.8 | 8 | 4 | 48.1 |
| 17E2225 | 2.5 | 2.5 | 1 | 1.8 | 4 | 48.1 |
Available Lead Screw and Travel Per Step
Swipe left or right to view the full table.
| Screw Dia. [inch] | Screw Dia. [mm] | Lead [inch] | Lead [mm] | Lead Code | Travel Per Step @ 1.8° [mm] |
|---|---|---|---|---|---|
| 0.25 | 6.35 | 0.024 | 0.6096 | AA | 0.003048 |
| 0.25 | 6.35 | 0.0394 | 1.0 | AB | 0.005 |
| 0.25 | 6.35 | 0.025 | 0.635 | A | 0.003175 |
| 0.25 | 6.35 | 0.048 | 1.2192 | B | 0.006096 |
| 0.25 | 6.35 | 0.05 | 1.27 | D | 0.00635 |
| 0.25 | 6.35 | 0.0625 | 1.5875 | F | 0.0079 |
| 0.25 | 6.35 | 0.096 | 2.4384 | J | 0.0122 |
| 0.25 | 6.35 | 0.1 | 2.54 | K | 0.0127 |
| 0.25 | 6.35 | 0.125 | 3.175 | L | 0.0159 |
| 0.25 | 6.35 | 0.192 | 4.8768 | Q | 0.024 |
| 0.25 | 6.35 | 0.2 | 5.08 | R | 0.0254 |
| 0.25 | 6.35 | 0.25 | 6.35 | S | 0.0318 |
| 0.25 | 6.35 | 0.333 | 8.4667 | U | 0.0423 |
| 0.25 | 6.35 | 0.384 | 9.7536 | W | 0.0488 |
| 0.25 | 6.35 | 0.5 | 12.7 | Y | 0.0635 |
| 0.25 | 6.35 | 1 | 25.4 | Z | 0.127 |
| 0.315 | 8 | 0.1575 | 4 | M | 0.02 |
| 0.315 | 8 | 0.315 | 8 | T | 0.04 |
| 0.315 | 8 | 0.0787 | 2 | G | 0.01 |
| 0.315 | 8 | 0.3937 | 10 | C | 0.05 |
Mechanical Specifications
Swipe left or right to view the full table.
| Model | C100B Dynamic [kN] | Co Static [kN] | Mro [Nm] | Mpo [Nm] | Myo [Nm] |
|---|---|---|---|---|---|
| DWM 42 | 1.38 | 2.08 | 3.8 | 7.9 | 7.9 |
Available Stroke Selection
Swipe left or right to view the full table.
| Size A [mm] | Stroke B [mm] | Single Stack Weight [kg] | Double Stack Weight [kg] |
|---|---|---|---|
| 124 | 50 | 0.651 | 0.783 |
| 174 | 100 | 0.73 | 0.862 |
| 224 | 150 | 0.809 | 0.941 |
| 274 | 200 | 0.888 | 1.02 |
| 324 | 250 | 0.968 | 1.1 |
| 374 | 300 | 1.047 | 1.179 |
| 424 | 350 | 1.126 | 1.258 |
| 474 | 400 | 1.205 | 1.337 |
| 524 | 450 | 1.274 | 1.406 |
| 574 | 500 | 1.343 | 1.475 |
* Weight values are for reference only and may vary with actual configuration.
Dimensional Drawing
Click the dimensional line drawing to view it larger.
Speed Thrust Curves
Downloads
Customization Options
Stroke Length
Configure the stroke length around your application’s travel, envelope, and mounting requirements.
Lead Screw Selection
Select from available lead codes to balance resolution, speed, and thrust requirements.
Wiring & Connectors
Custom wire length, connector style, and cable routing can be reviewed for OEM integration.
Application Review
Work with DINGS’ Motion USA to review load, speed, duty cycle, and packaging needs.
Part Number Builder
Use this DWM part number construction guide to identify the product name, stroke, motor size, motor type, step angle, motor length, rated current, lead screw code, lead wires, option, and serial number.
DWM Series Module.
Stroke length in millimeters. Example: 100 = 100 mm.
Motor size by NEMA frame. DWM sizes include 8, 11, 14, 17, and 23.
E = External Type.
- 2 = 2-phase, 1.8° step angle
- 4 = 2-phase, 0.9° step angle
- 1 = Single Stack
- 2 = Double Stack
XX = X.X [A] / Phase. Example: 10 = 1.0 A / Phase.
Lead screw code. Confirm final lead selection from the lead screw code selection table.
- 4 = 4-wire leads
- 6 = 6-wire leads
- EKX = Encoder
- P = Manual Knob
- B = Brake
- X = Rear Shaft
- R = Encoder Ready
- C = Customization
- N = No rear-end machining
Serial or special configuration number.
Need help selecting a DWM slide actuator?
Work with DINGS’ Motion USA to compare lead screw options, stroke length, Quick Ship availability, or a custom DWM slide actuator configuration for your application.
