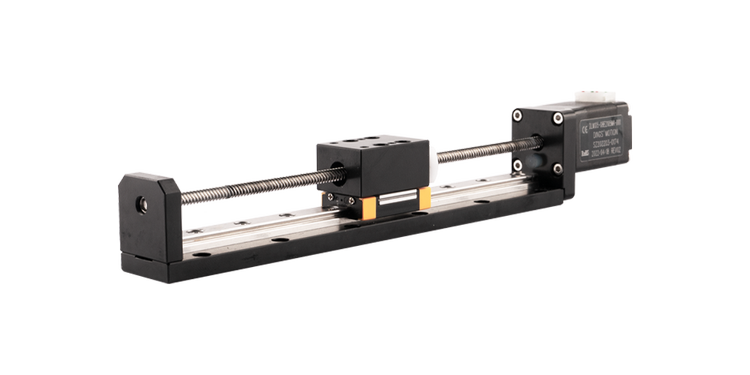

NEMA 6 DSM 14 MM Slide Actuator
The NEMA 6 DSM Series slide actuator is a compact 14 mm linear module that combines a stepper motor, lead screw, and guided slide into one ready-to-integrate motion solution.
Designed for small OEM systems, the DSM 14 mm series offers flexible lead screw options, multiple stroke selections, and a compact structure for precise linear motion.
Motor Characteristics
Swipe left or right to view the full table.
| Motor | Voltage [V] | Current [A RMS] | Resistance [Ω] | Inductance [mH] | Weight [g] | Lead Wire No. | Motor Length [mm] |
|---|---|---|---|---|---|---|---|
| 6E2103 | 6.6 | 0.25 | 22 | 4.5 | 60 | 4 | 32 |
Available Lead Screw and Travel Per Step
Swipe left or right to view the full table.
| Screw Dia. [inch] | Screw Dia. [mm] | Lead [inch] | Lead [mm] | Lead Code | Travel Per Step @ 1.8° [mm] |
|---|---|---|---|---|---|
| 0.138 | 3.5 | 0.0118 | 0.3 | AF | 0.0015 |
| 0.138 | 3.5 | 0.024 | 0.6096 | AA | 0.003048 |
| 0.138 | 3.5 | 0.048 | 1.2192 | B | 0.006096 |
| 0.138 | 3.5 | 0.0787 | 2 | G | 0.01 |
| 0.138 | 3.5 | 0.1575 | 4 | M | 0.02 |
| 0.138 | 3.5 | 0.315 | 8 | T | 0.04 |
Mechanical Specifications
Swipe left or right to view the full table.
| Model | C100B Dynamic [N] | Co Static [N] | Mro [Nm] | Mpo [Nm] | Myo [Nm] |
|---|---|---|---|---|---|
| DSM14 | 714 | 1071 | 3.794 | 2.219 | 2.219 |
Dimensional Drawing
Available Stroke Selection
Swipe left or right to view the full table.
| Size A [mm] | Stroke B [mm] | Single Stack Weight [kg] | Double Stack Weight [kg] |
|---|---|---|---|
| 66 | 20 | 0.09 | - |
| 86 | 40 | 0.103 | - |
| 106 | 60 | 0.109 | - |
| 126 | 80 | 0.115 | - |
| 146 | 100 | 0.121 | - |
Downloads
Customization Options
Stroke Length
Configure the stroke length around your application’s travel, envelope, and mounting requirements.
Lead Screw Selection
Select from available lead codes to balance resolution, speed, and thrust requirements.
Wiring & Connectors
Custom wire length, connector style, and cable routing can be reviewed for OEM integration.
Application Review
Work with DINGS’ Motion USA to review load, speed, duty cycle, and packaging needs.
Part Number Builder
Use this DSM part number construction guide to identify the product name, stroke, motor size, motor type, step angle, motor length, rated current, lead screw code, lead wires, option, and serial number.
DSM Series Module.
Stroke length in millimeters. Example: 100 = 100 mm.
Motor size by NEMA frame. DSM sizes include 06, 08, 11, 14, and 17.
- E = External Type
- N = Non-Captive Type
- 2 = 2-phase, 1.8° step angle
- 4 = 2-phase, 0.9° step angle
- 1 = Single Stack
- 2 = Double Stack
XX = X.X [A] / Phase. Confirm current code with the selected motor winding.
Lead screw code. Confirm final lead selection from the lead screw code selection table.
- 4 = 4-wire leads
- 6 = 6-wire leads
- EKX = Encoder [X = Encoder Resolution]
- P = Manual Knob
- B = Brake
- X = Rear Shaft
- R = Encoder Ready
- C = Customization
- N = No rear-end machining
Serial or special configuration number.
Final DSM part numbers should be confirmed with DINGS’ Motion USA before ordering.
