NEMA 34 IP Rated 86 mm Hybrid Stepper Motor
A rugged IP65-rated hybrid stepper motor designed for demanding motion applications where dust protection, water-jet resistance, high torque, and reliable rotary motion are required.
Product Overview
NEMA 34 IP rated hybrid stepper motors provide an 86 mm frame size for high-torque rotary motion applications requiring environmental protection, strong holding torque, and dependable performance in demanding industrial conditions.
NEMA 34 frame size for high-torque rotary motion applications.
Protection against dust ingress and low-pressure water jets.
Holding torque options from 3.0 Nm up to 12.0 Nm.
Standard hybrid stepper performance with multiple winding options.
Specifications
Swipe left or right to view the full table.
1.8° Step Angle
| Motor | Holding Torque (Nm) | Current (A) | Resistance (Ω) | Step Angle (°) | Rotor Inertia (gfcm²) | Weight (kg) | Motor Length (mm) | Inductance (mH) |
|---|---|---|---|---|---|---|---|---|
| 34H2060-300-4A | 3.0 | 3.0 | 1.0 | 1.8 | 1100 | 1.6 | 60.5 | 6.0 |
| 34H2060-450-4A | 3.0 | 4.5 | 0.5 | 1.8 | 1100 | 1.6 | 60.5 | 2.7 |
| 34H2060-600-4A | 3.0 | 6.0 | 0.3 | 1.8 | 1100 | 1.6 | 60.5 | 1.6 |
| 34H2068-300-4A | 3.6 | 3.0 | 1.2 | 1.8 | 1400 | 1.8 | 66.5 | 8.5 |
| 34H2068-450-4A | 3.6 | 4.5 | 0.5 | 1.8 | 1400 | 1.8 | 66.5 | 4.0 |
| 34H2068-600-4A | 3.6 | 6.0 | 0.3 | 1.8 | 1400 | 1.8 | 66.5 | 2.2 |
| 34H2080-300-4A | 4.5 | 3.0 | 1.3 | 1.8 | 1800 | 2.1 | 75 | 12.0 |
| 34H2080-450-4A | 4.5 | 4.5 | 0.6 | 1.8 | 1800 | 2.1 | 75 | 6.0 |
| 34H2080-600-4A | 4.5 | 6.0 | 0.3 | 1.8 | 1800 | 2.1 | 75 | 3.4 |
| 34H2098-300-4A | 7.2 | 3.0 | 1.7 | 1.8 | 2800 | 2.9 | 96.5 | 18.0 |
| 34H2098-450-4A | 7.2 | 4.5 | 0.8 | 1.8 | 2800 | 2.9 | 96.5 | 8.3 |
| 34H2098-600-4A | 7.2 | 6.0 | 0.5 | 1.8 | 2800 | 2.9 | 96.5 | 4.3 |
| 34H2120-300-4A | 8.5 | 3.0 | 2.1 | 1.8 | 3600 | 3.6 | 113.5 | 25.7 |
| 34H2120-450-4A | 8.5 | 4.5 | 0.9 | 1.8 | 3600 | 3.6 | 113.5 | 11.8 |
| 34H2120-600-4A | 8.5 | 6.0 | 0.5 | 1.8 | 3600 | 3.6 | 113.5 | 6.5 |
| 34H2128-450-4A | 10.5 | 4.5 | 1.0 | 1.8 | 4200 | 4.1 | 126 | 12.0 |
| 34H2128-600-4A | 10.5 | 6.0 | 0.6 | 1.8 | 4200 | 4.1 | 126 | 6.4 |
| 34H2128-750-4A | 10.5 | 7.5 | 0.4 | 1.8 | 4200 | 4.1 | 126 | 4.6 |
| 34H2160-450-4A | 12.0 | 4.5 | 1.3 | 1.8 | 5400 | 5.0 | 151.5 | 16.5 |
| 34H2160-600-4A | 12.0 | 6.0 | 0.7 | 1.8 | 5400 | 5.0 | 151.5 | 9.2 |
| 34H2160-750-4A | 12.0 | 7.5 | 0.5 | 1.8 | 5400 | 5.0 | 151.5 | 6.3 |

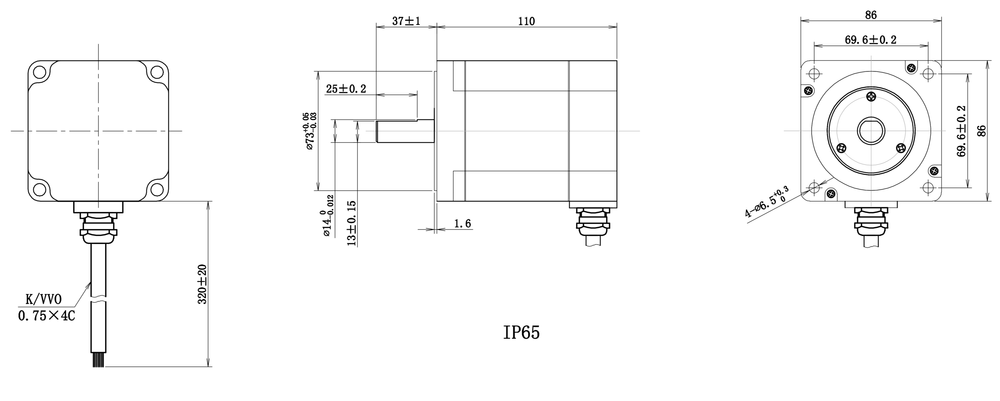

NEMA 34 Dimensions
NEMA 34 Speed Torque Curves
All speed / torque curves below are generated using 8:1 microstepping setting on driver.
1.8° Step Angle

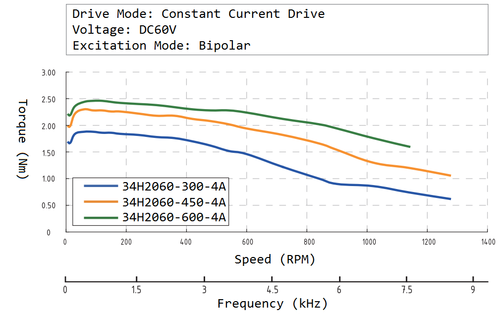

34H2060

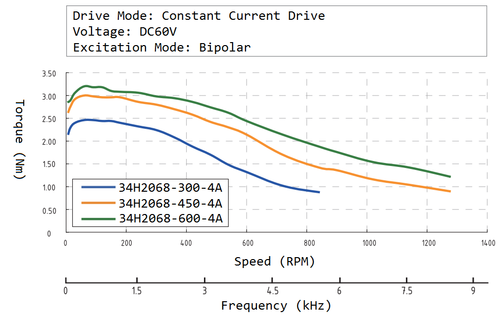

34H2068

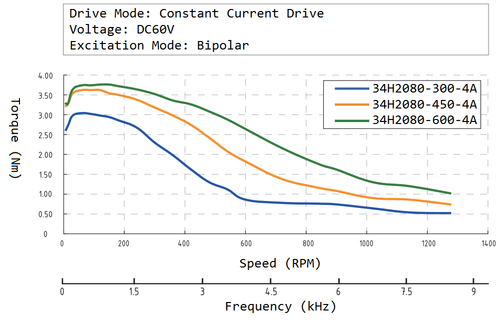

34H2080

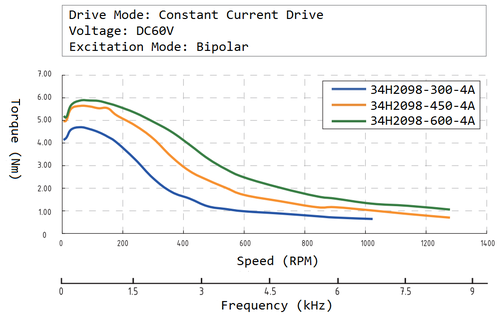

34H2098

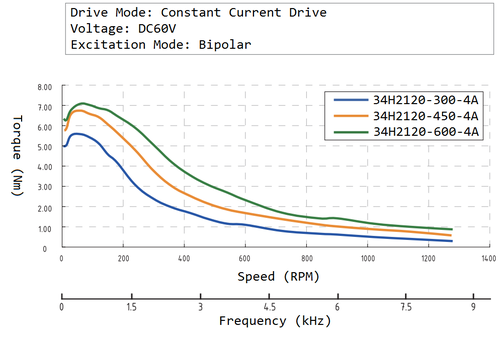

34H2120

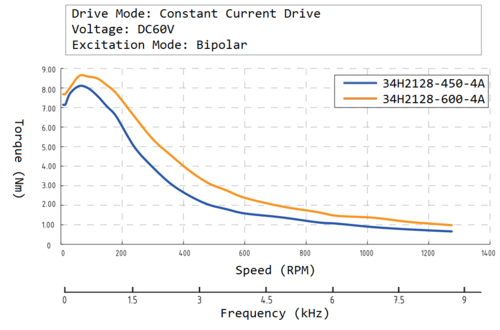

34H2128

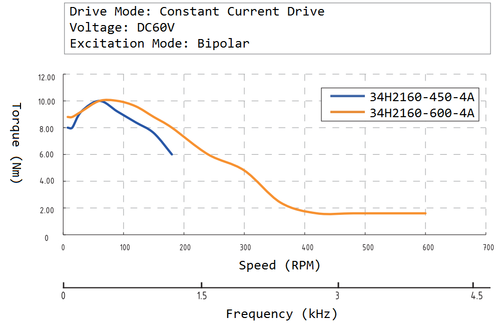

34H2160
