NEMA 24 IP Rated 60 mm Hybrid Stepper Motor
A rugged IP65-rated hybrid stepper motor designed for demanding motion applications where dust protection, water-jet resistance, high torque, and reliable rotary motion are required.
Product Overview
NEMA 24 IP rated hybrid stepper motors provide a 60 mm frame size for applications requiring higher torque capacity, environmental protection, and reliable rotary motion in demanding industrial environments.
NEMA 24 frame size for higher torque rotary motion applications.
Protection against dust ingress and low-pressure water jets.
Standard hybrid stepper performance with multiple winding options.
Optional encoder and gearbox configurations are available.
Specifications
Swipe left or right to view the full table.
1.8° Step Angle
| Motor | Holding Torque (Nm) | Current (A) | Resistance (Ω) | Step Angle (°) | Rotor Inertia (gfcm²) | Weight (kg) | Motor Length (mm) | Inductance (mH) |
|---|---|---|---|---|---|---|---|---|
| 24H2048-200-4A | 1.1 | 2.0 | 1.5 | 1.8 | 240 | 0.6 | 47 | 3.9 |
| 24H2048-300-4A | 1.1 | 3.0 | 0.6 | 1.8 | 240 | 0.6 | 47 | 1.6 |
| 24H2048-400-4A | 1.1 | 4.0 | 0.4 | 1.8 | 240 | 0.6 | 47 | 0.9 |
| 24H2056-200-4A | 1.5 | 2.0 | 1.8 | 1.8 | 340 | 0.8 | 56 | 6.0 |
| 24H2056-300-4A | 1.5 | 3.0 | 0.8 | 1.8 | 340 | 0.8 | 56 | 2.5 |
| 24H2056-400-4A | 1.5 | 4.0 | 0.4 | 1.8 | 340 | 0.8 | 56 | 1.4 |
| 24H2069-300-4A | 2.2 | 3.0 | 1.0 | 1.8 | 490 | 1.0 | 68 | 3.4 |
| 24H2069-400-4A | 2.2 | 4.0 | 0.6 | 1.8 | 490 | 1.0 | 68 | 1.9 |
| 24H2069-500-4A | 2.2 | 5.0 | 0.3 | 1.8 | 490 | 1.0 | 68 | 1.2 |
| 24H2086-300-4A | 3.0 | 3.0 | 1.3 | 1.8 | 690 | 1.3 | 85 | 5.0 |
| 24H2086-400-4A | 3.0 | 4.0 | 0.8 | 1.8 | 690 | 1.3 | 85 | 3.0 |
| 24H2086-500-4A | 3.0 | 5.0 | 0.4 | 1.8 | 690 | 1.3 | 85 | 2.0 |
NEMA 24 Speed Torque Curves
All speed / torque curves below are generated using 8:1 microstepping setting on driver.
1.8° Step Angle

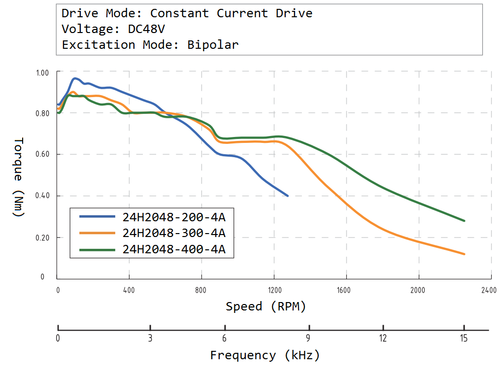

24H2048

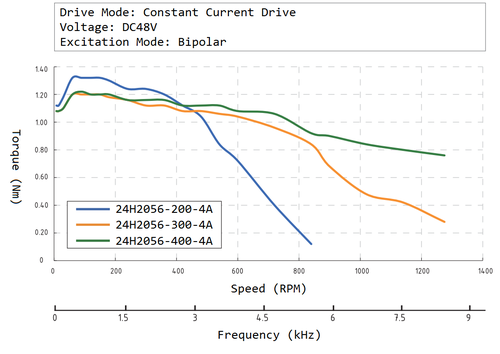

24H2056

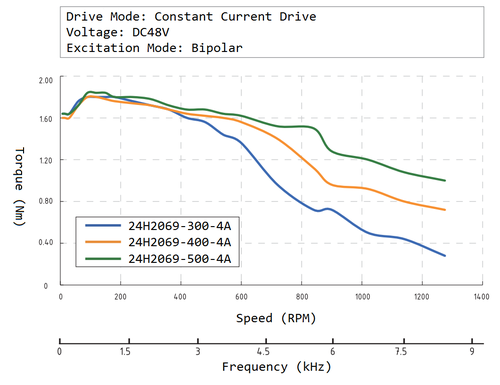

24H2069

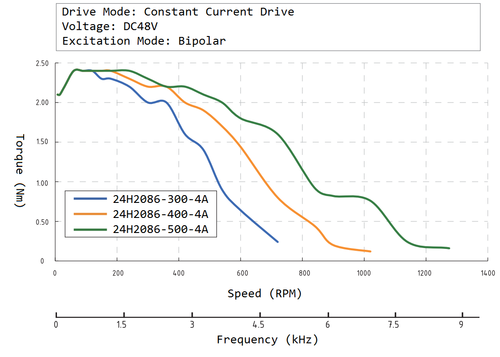

24H2086

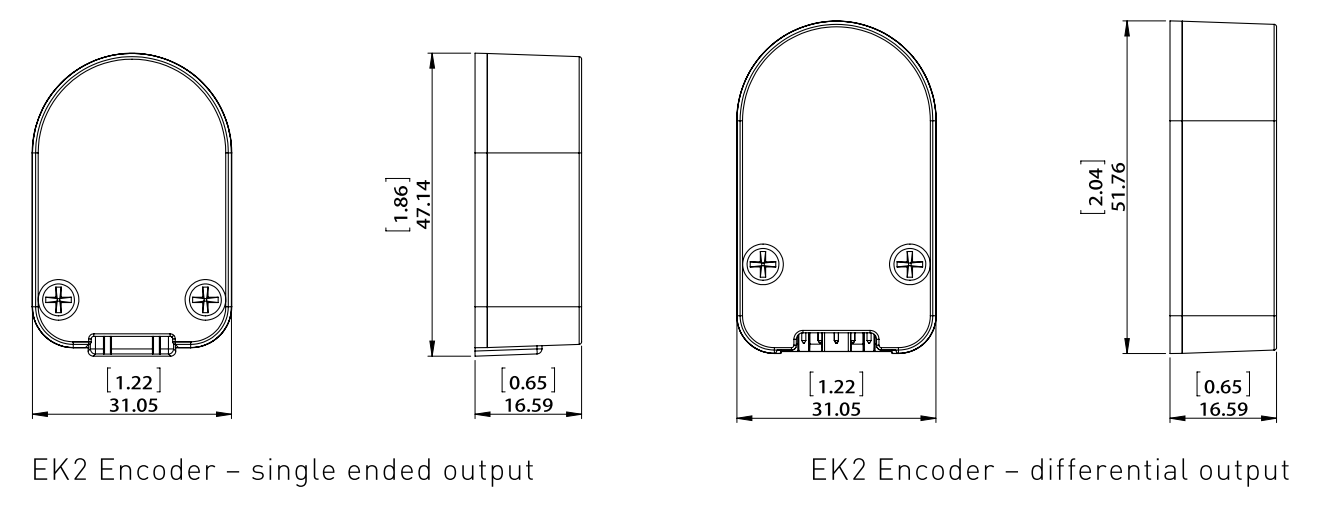

Encoder Option
Encoder options are available for applications that require position feedback, improved motion verification, or closed-loop stepper performance. DINGS’ can help match encoder requirements to your control system and application needs.
Supports position monitoring and motion verification.
Available with custom cabling and connector options.

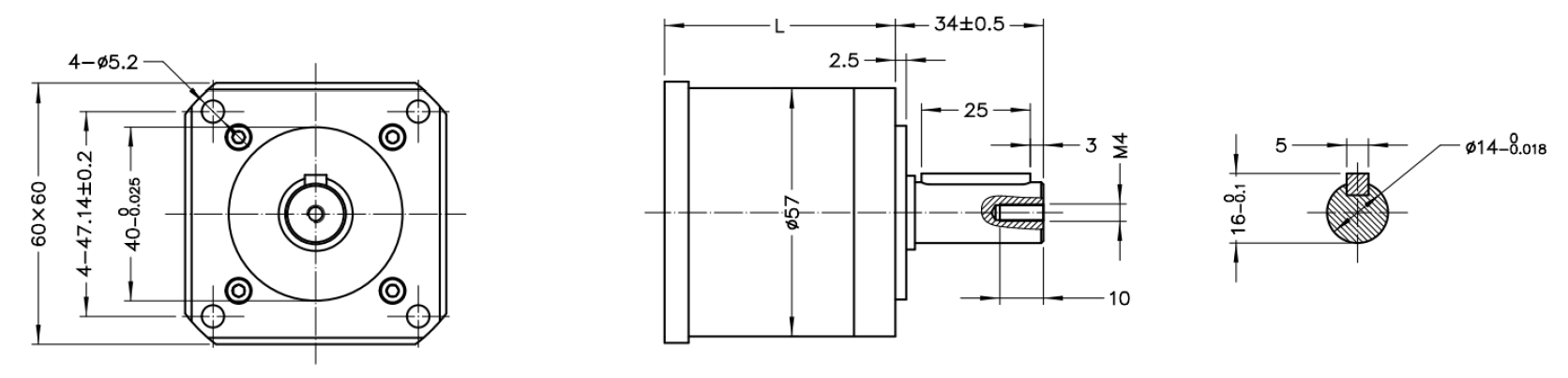

Gearbox Option
Gearbox configurations are available for applications requiring increased output torque, reduced speed, and improved mechanical advantage in compact rotary motion systems.
60 mm Gearbox Specifications
Swipe left or right to view the full table.
| Frame Material | Metal | |||||
|---|---|---|---|---|---|---|
| No Load Backlash | One Stage: 15 arcmin, Two Stage: 25 arcmin | |||||
| Bearings | Ball Bearing | |||||
| Ratio | Rated Torque (Kgf-cm) |
Limit Torque (Kgf-cm) |
Stages | Efficiency (%) |
Length (mm) |
Mass (g) |
| 5 | 60 | 120 | 1 | 95 | 53 | 900 |
| 10 | ||||||
| 15 | 250 | 400 | 2 | 90 | 70 | 1200 |
| 20 | ||||||
| 25 | ||||||
Downloads
Customizations
DINGS’ can support application-specific rotary stepper motor requirements, including environmental protection, shaft configuration, connector needs, wiring, feedback, gearbox integration, and custom mechanical features.
Custom shafts, covers, mounting features, motor length, and assembly requirements.
Application-specific winding, current, voltage, cable, and connector requirements.
Protection for dust, moisture, washdown exposure, and demanding industrial conditions.
Encoder and gearbox options available for more complete rotary motion assemblies.
Need help selecting or customizing a NEMA 24 IP rated stepper motor?
DINGS’ Motion USA can help review holding torque, winding, shaft design, encoder requirements, gearbox integration, cabling, environmental protection, and custom mechanical features for your application.
