NEMA 23 IP54 Stepper Lead Screw Linear Actuator
The NEMA 23 IP54 stepper linear actuator provides robust, precise motion control in a versatile package with protection against dust and splashing water.
Ideal for CNC machines, automated manufacturing, and industrial automation systems where reliable linear motion is required in demanding environments.
Motor Characteristics
| Motor | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Lead Wire No. | Motor Length (mm) |
|---|---|---|---|---|---|---|
| 23-2110 | 6.4 | 1.0 | 6.4 | 16.4 | 4 | 45 |
| 23-2120 | 3.2 | 2.0 | 1.6 | 4.1 | 4 | 45 |
| 23-2130 | 2.1 | 3.0 | 0.7 | 1.7 | 4 | 45 |
| 23-2210 | 10.8 | 1.0 | 10.8 | 32.0 | 4 | 65 |
| 23-2225 | 4.2 | 2.5 | 1.7 | 5.2 | 4 | 65 |
| 23-2240 | 2.4 | 4.0 | 0.65 | 2.0 | 4 | 65 |
Lead Screw Options
| Screw Diameter (inch) | Screw Diameter (mm) | Lead (inch) | Lead (mm) | Lead Code | Travel Per Step (mm) |
|---|---|---|---|---|---|
| 0.375 | 9.525 | 0.025 | 0.635 | A | 0.003 |
| 0.375 | 9.525 | 0.05 | 1.27 | D | 0.0064 |
| 0.375 | 9.525 | 0.0625 | 1.5875 | F | 0.0079375 |
| 0.375 | 9.525 | 0.083 | 2.1082 | H | 0.01 |
| 0.375 | 9.525 | 0.1 | 2.54 | K | 0.012 |
| 0.375 | 9.525 | 0.125 | 3.175 | L | 0.015 |
| 0.375 | 9.525 | 0.167 | 4.2418 | P | 0.021 |
| 0.375 | 9.525 | 0.2 | 5.08 | R | 0.025 |
| 0.375 | 9.525 | 0.25 | 6.35 | S | 0.031 |
| 0.375 | 9.525 | 0.375 | 9.525 | V | 0.047 |
| 0.375 | 9.525 | 0.384 | 9.7536 | W | 0.048 |
| 0.375 | 9.525 | 0.5 | 1.0 | Y | 0.063 |
| 0.375 | 9.525 | 1.0 | 25.4 | Z | 0.127 |

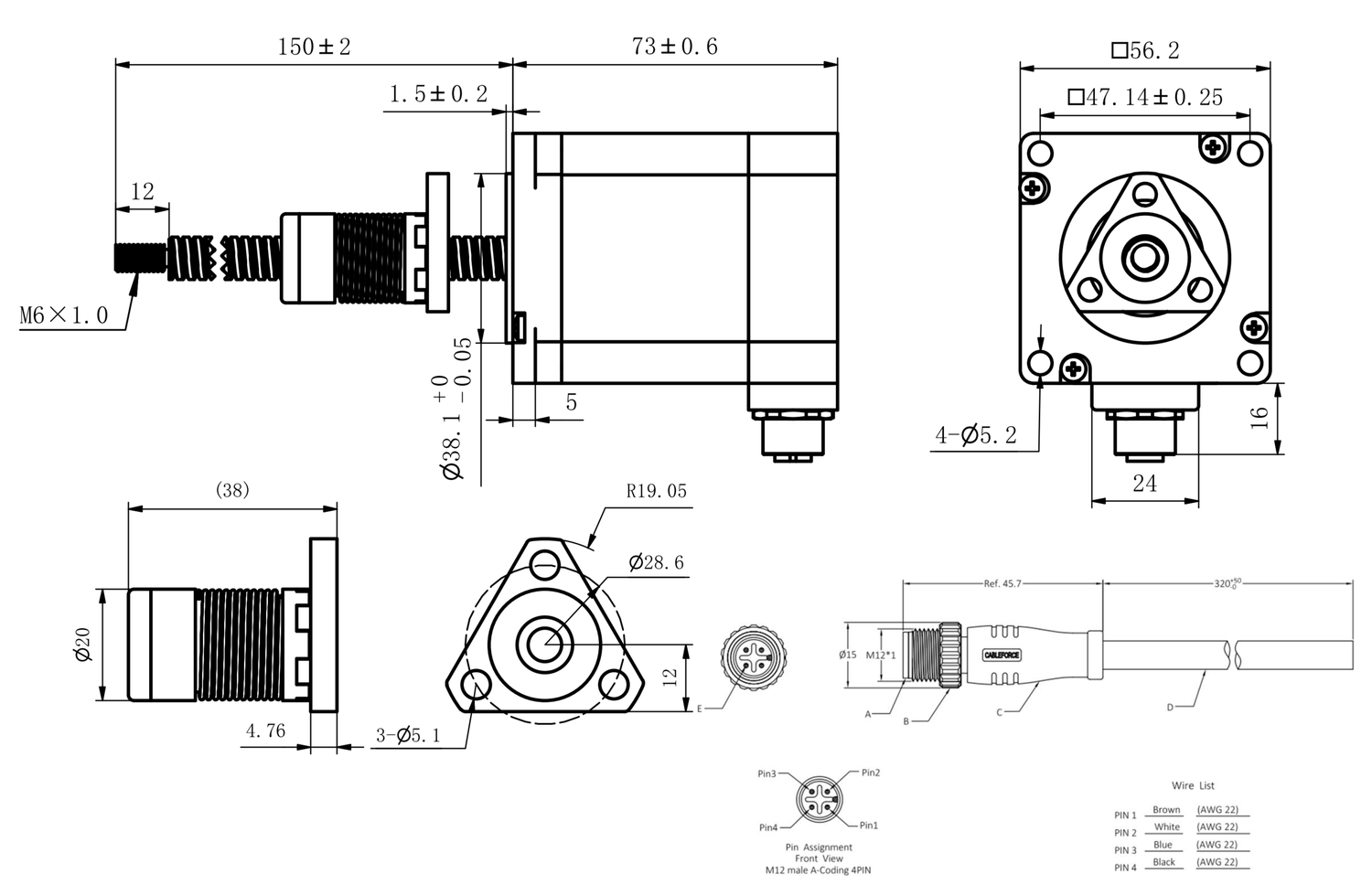

Dimensional Drawing
Click image to enlarge.

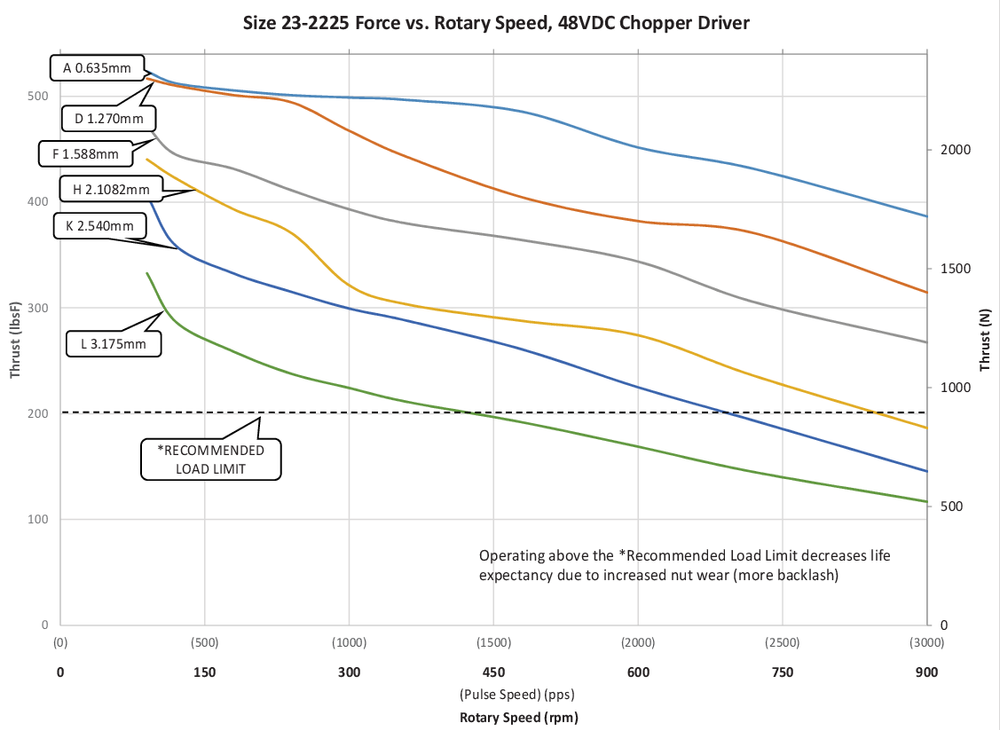

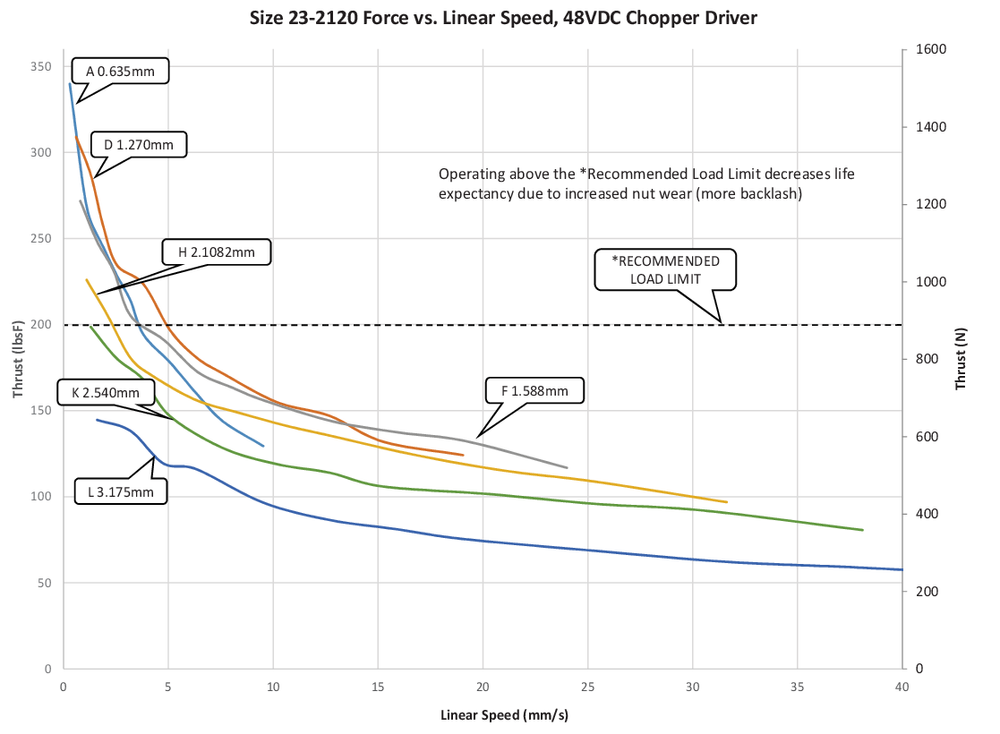

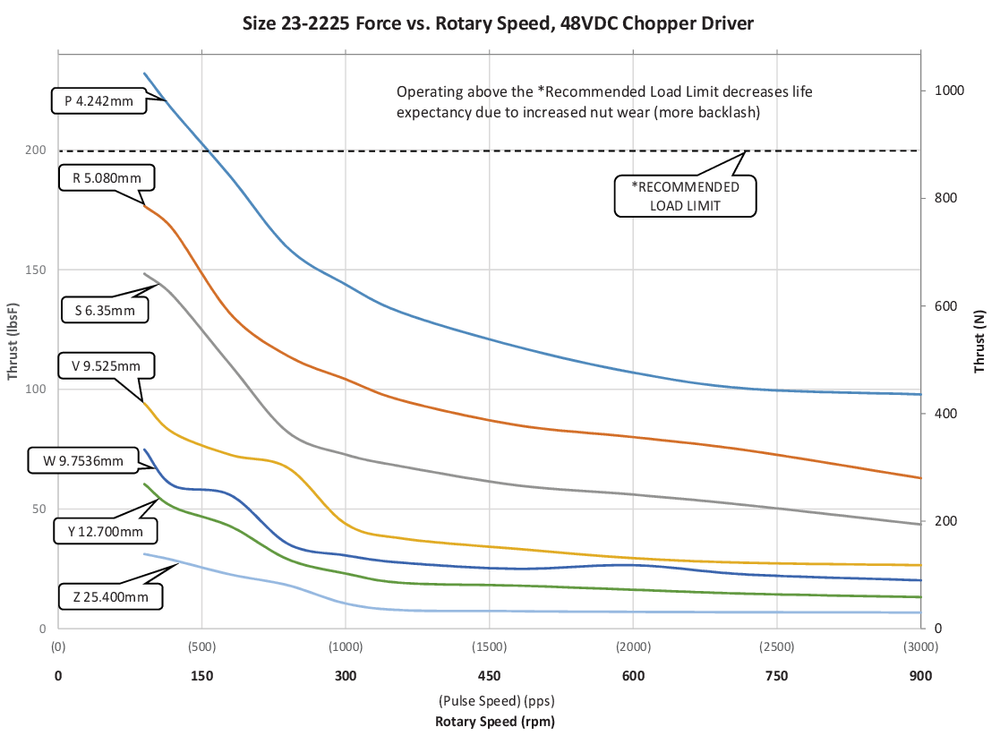

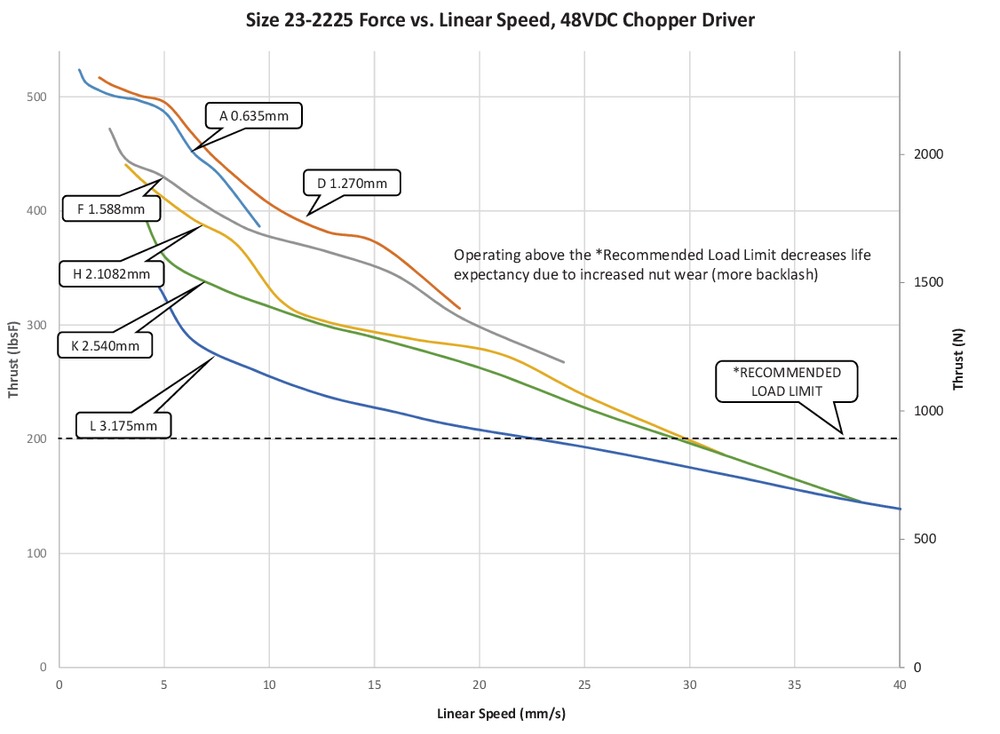

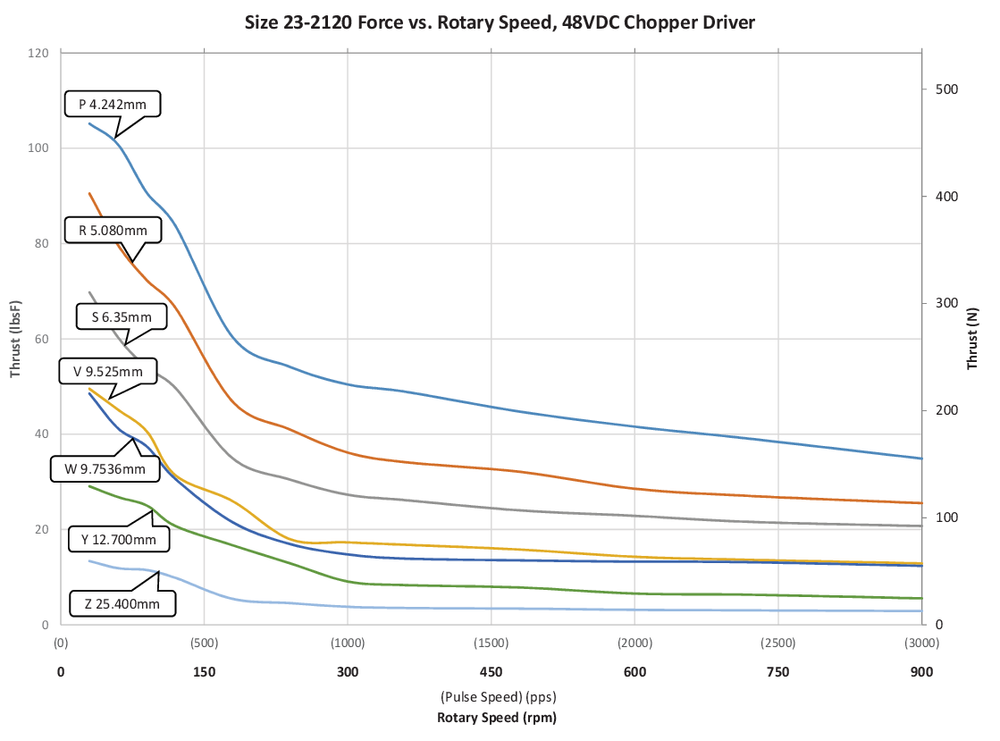

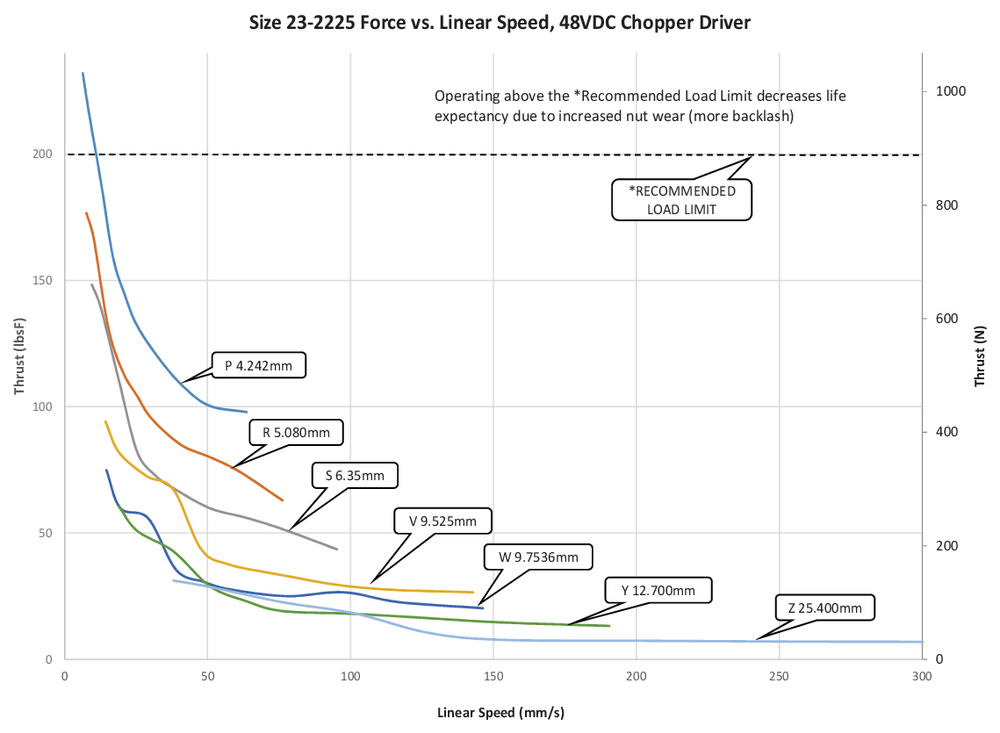

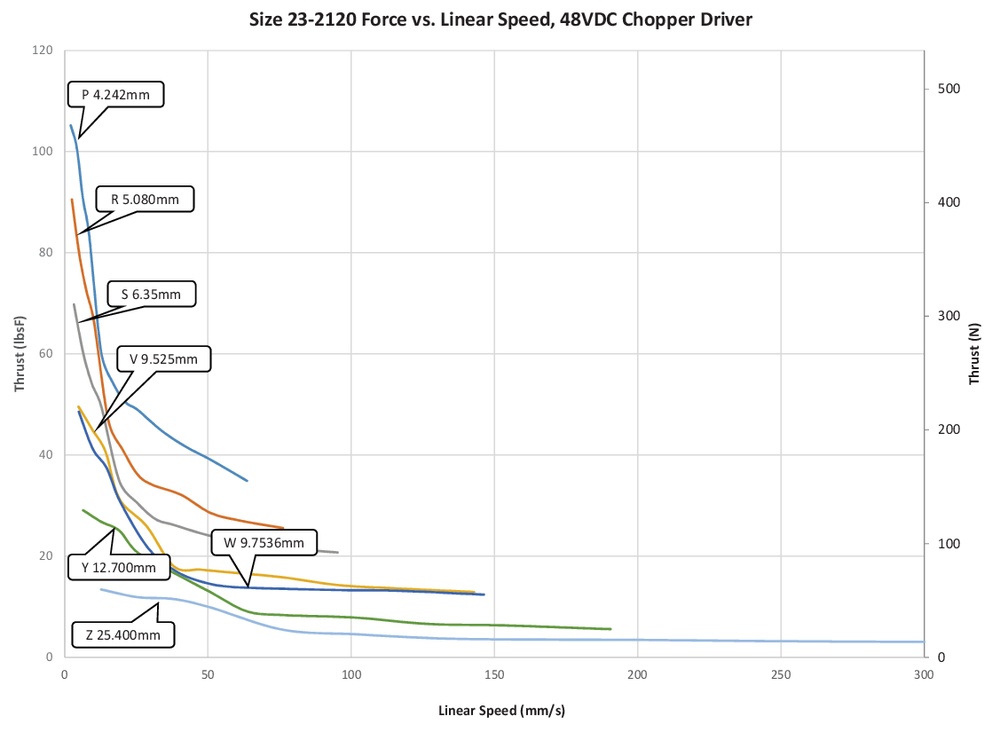

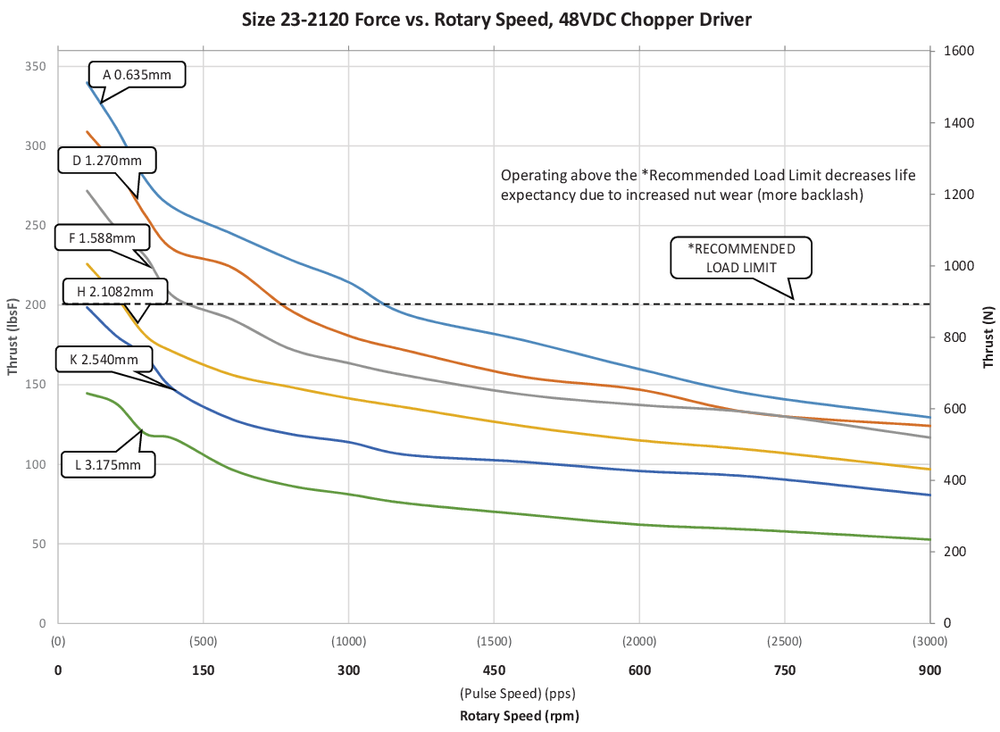

Speed Thrust Curves
All speed / thrust curves below are generated using 8:1 microstepping setting on driver.

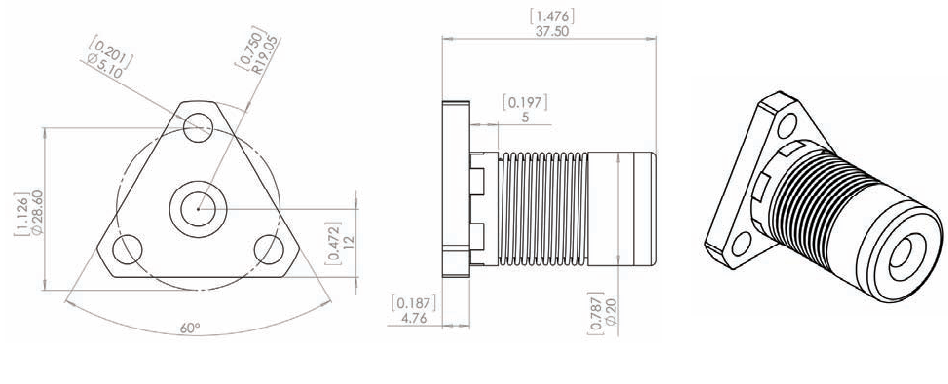

Available Options
Customization Options
DINGS’ Motion USA customizes Stepper Linear Actuators, PM Stepper Linear Actuators, Slide Actuators, and Voice Coil Motors for OEM applications.
Motor Platform
NEMA size, stack size, motor type, voltage and current ratings, windings, insulation class, force, torque, and speed.
Linear Motion Design

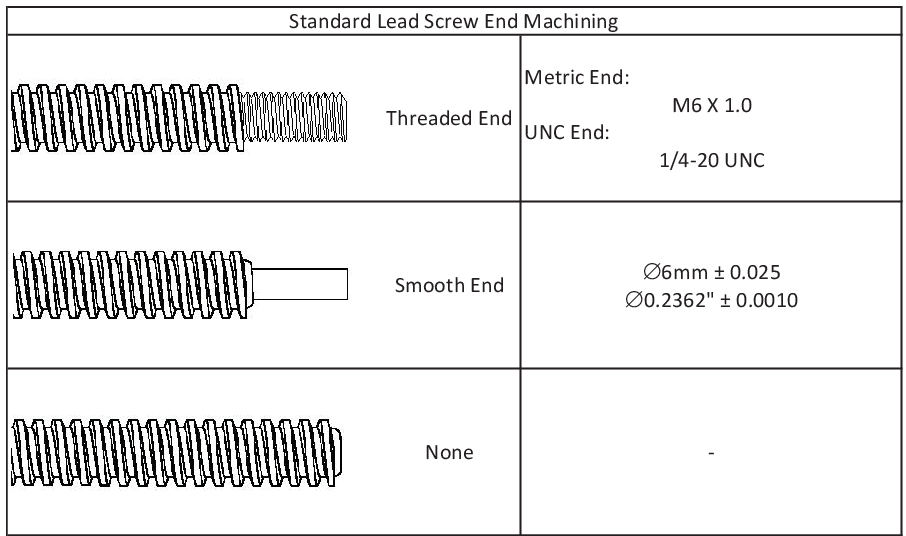

Stroke length, lead screw selection, shaft configurations, end machining, lubrication, and actuator style.
Electrical Integration
Cabling, connectors, lead wire details, harness routing, winding adjustments, encoder options, and electrical requirements.
Environmental Requirements
IP ratings, coatings, clean room capabilities, lubrication requirements, and application-specific protection needs.
Need help customizing a NEMA 23 IP54 rated linear actuator?
DINGS’ Motion USA can help review thrust, speed, IP rating needs, stroke length, lead screw selection, end machining, encoder options, cabling, and environmental requirements.
