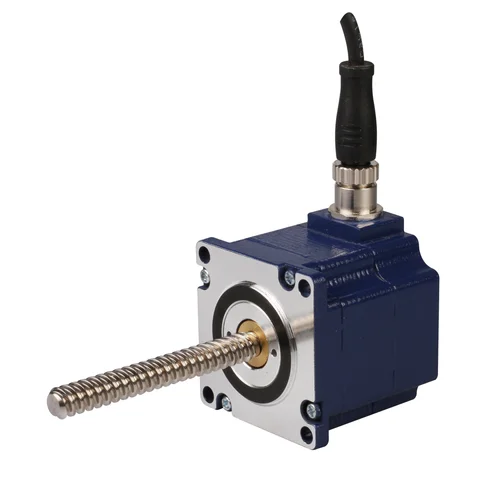

NEMA 11 IP54 Stepper Lead Screw Linear Actuator
The NEMA 11 IP54 rated linear actuator is designed for compact linear motion applications that require added protection from dust and light moisture exposure.
This actuator combines a hybrid stepper motor, integrated lead screw, and protective IP54 housing for reliable OEM motion control.
Motor Characteristics
| Motor | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Lead Wire No. | Motor Length (mm) |
|---|---|---|---|---|---|---|
| 11-2105 | 4.5 | 0.5 | 9.1 | 6.0 | 4 | 34 |
| 11-2110 | 2.2 | 1.0 | 2.2 | 1.5 | 4 | 34 |
| 11-2209 | 3.9 | 0.95 | 4.1 | 4.0 | 4 | 45 |
Lead Screw Options
| Screw Diameter (inch) | Screw Diameter (mm) | Lead (inch) | Lead (mm) | Lead Code | Travel Per Step (mm) |
|---|---|---|---|---|---|
| 0.188 | 4.7752 | 0.025 | 0.635 | A | 0.0032 |
| 0.188 | 4.7752 | 0.05 | 1.27 | D | 0.0063 |
| 0.188 | 4.7752 | 0.1 | 2.54 | K | 0.0127 |
| 0.188 | 4.7752 | 0.2 | 5.08 | R | 0.0254 |
| 0.188 | 4.7752 | 0.4 | 10.16 | X | 0.0508 |

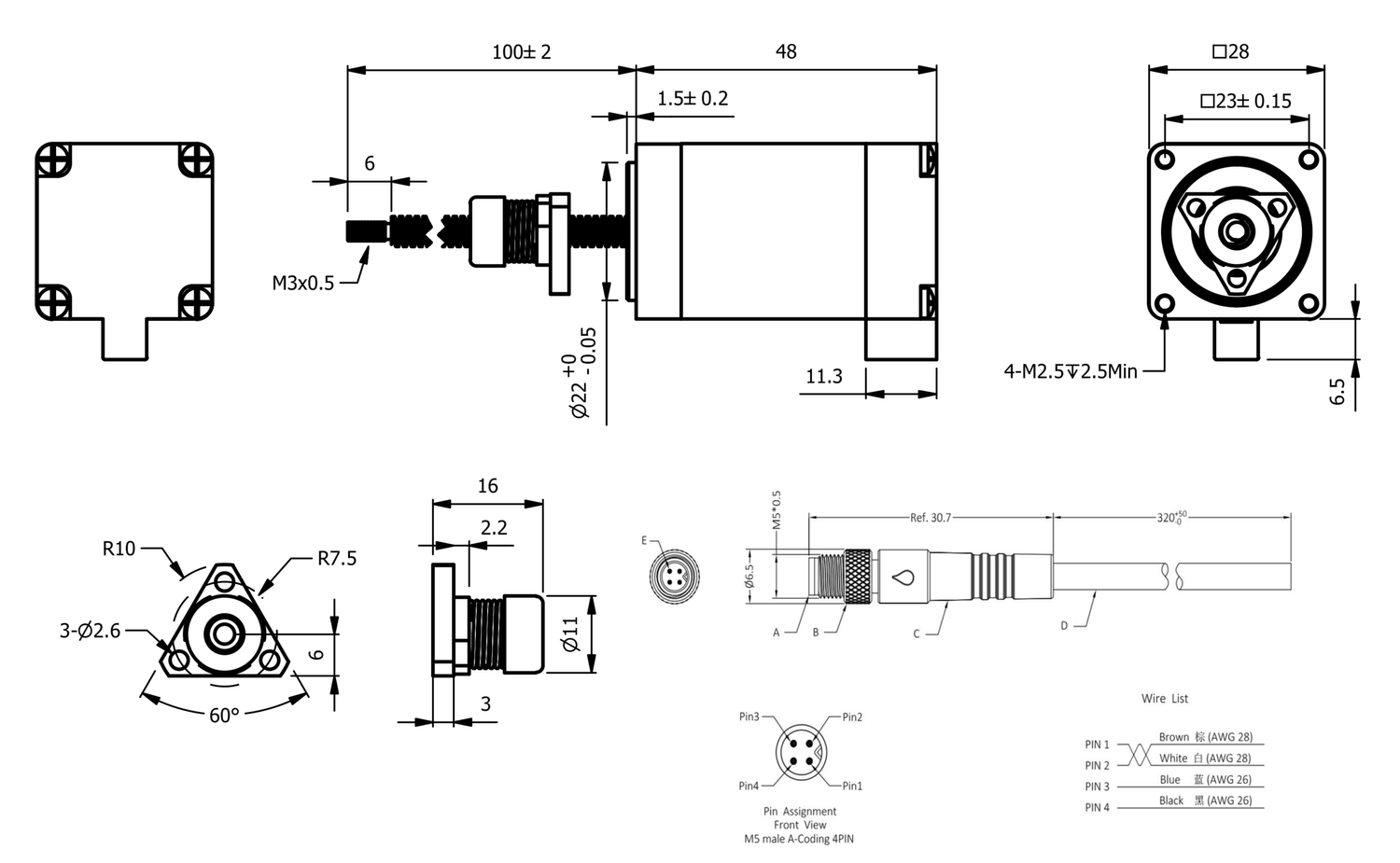

Dimensional Drawing
Click image to enlarge.

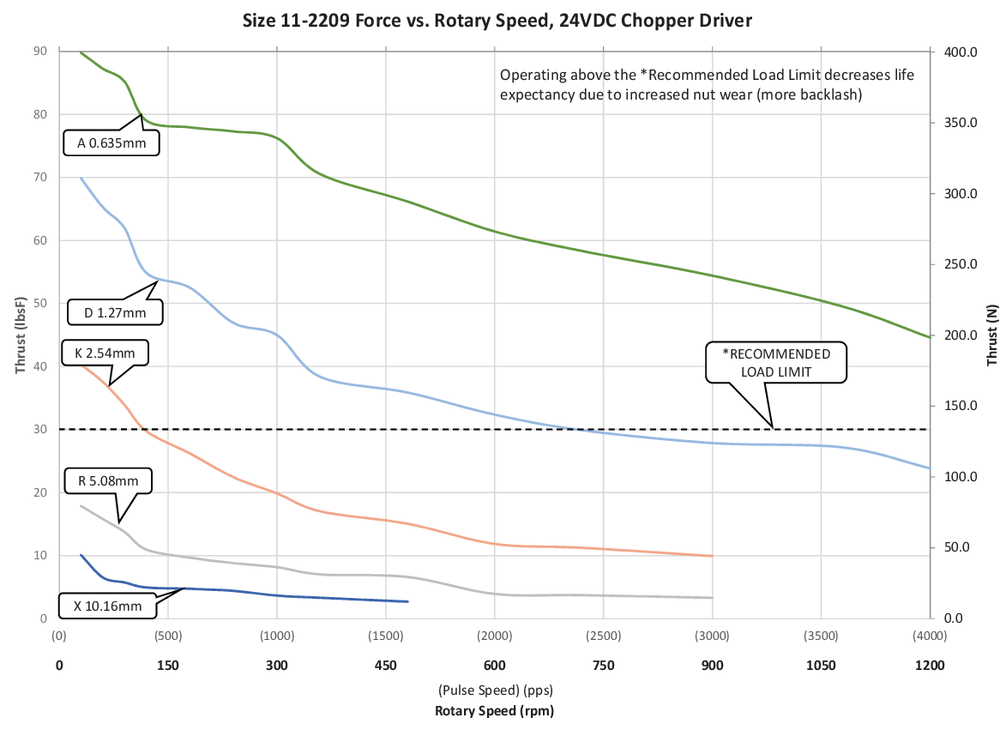

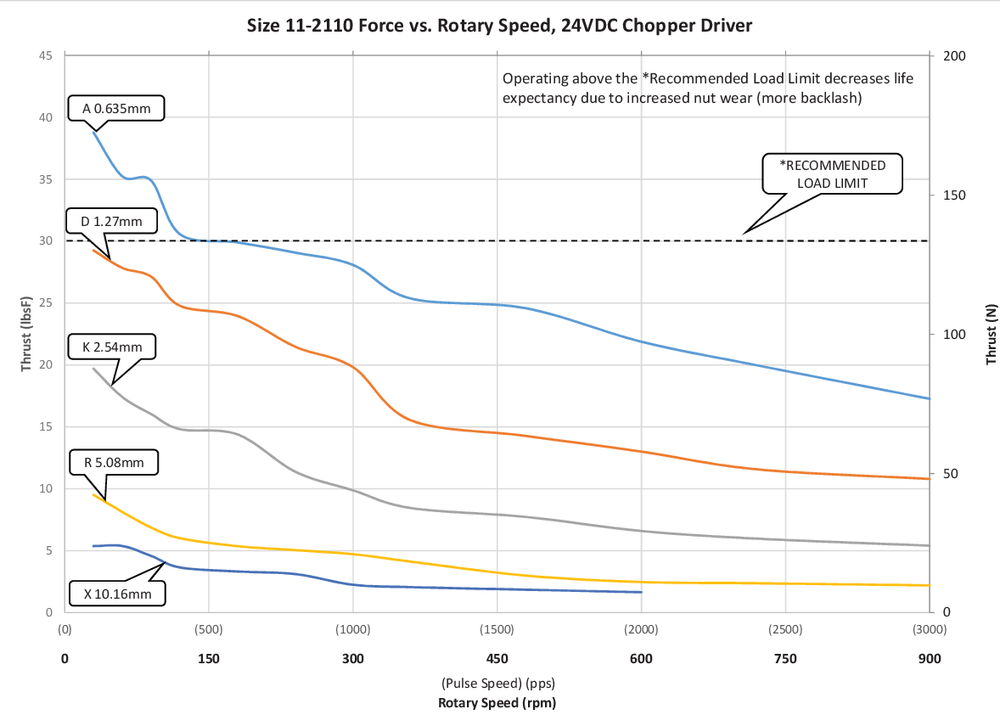

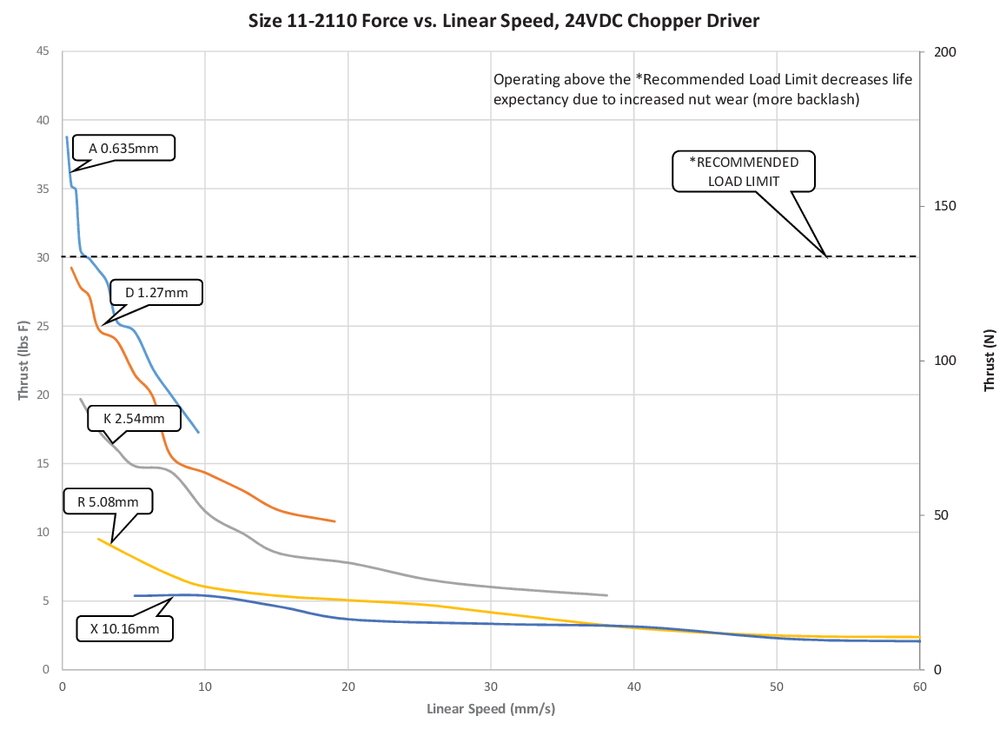

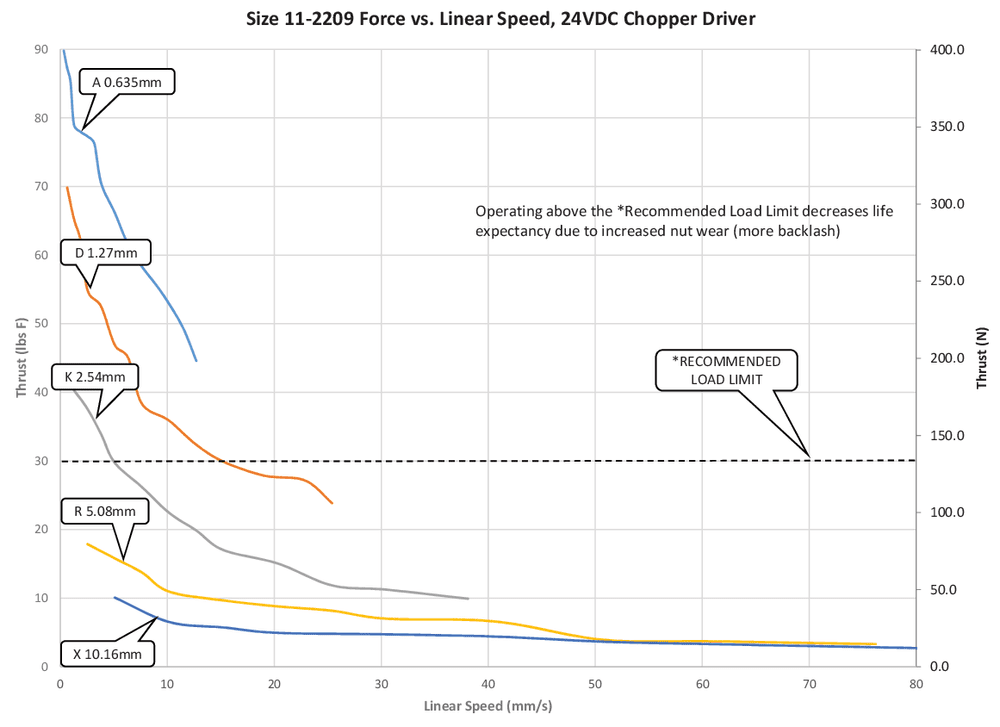

Speed Thrust Curves
Motor thrust changes with voltage, driver selection, lead screw option, and operating conditions. A 50% thrust margin is recommended.
Available Options

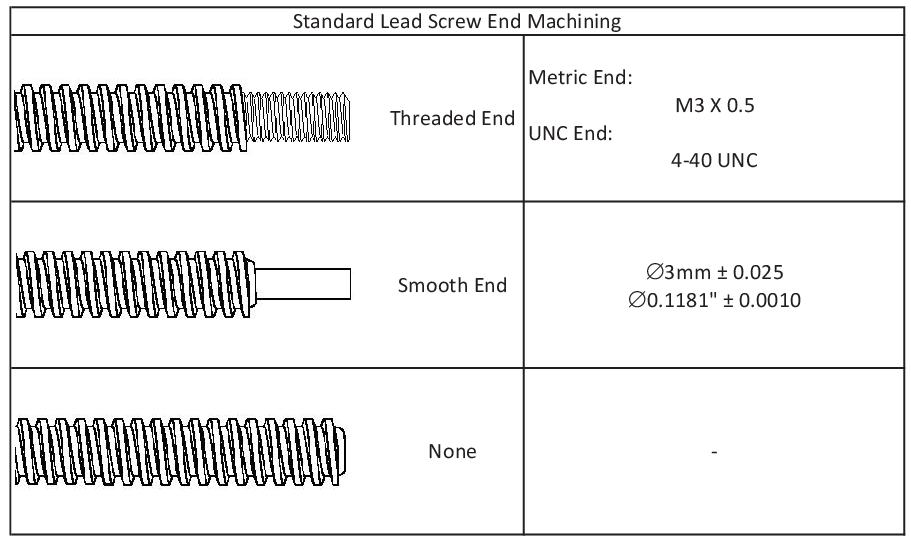

End machining options. Click to enlarge.

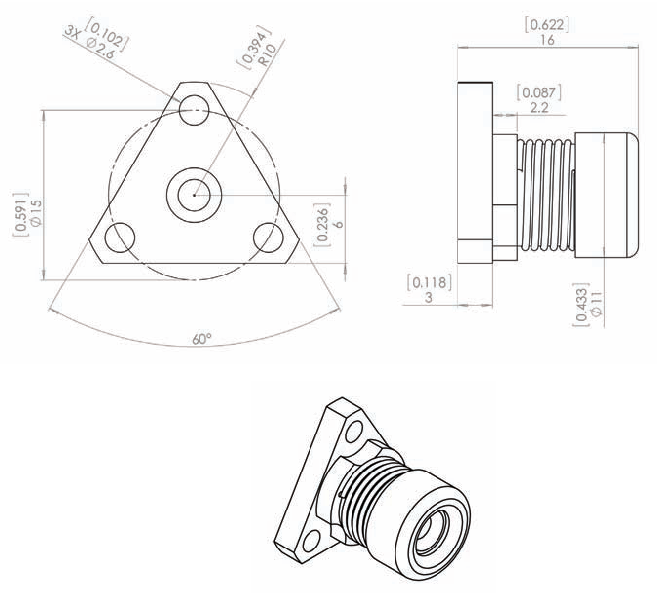

Anti-backlash nut drawing. Click to enlarge.

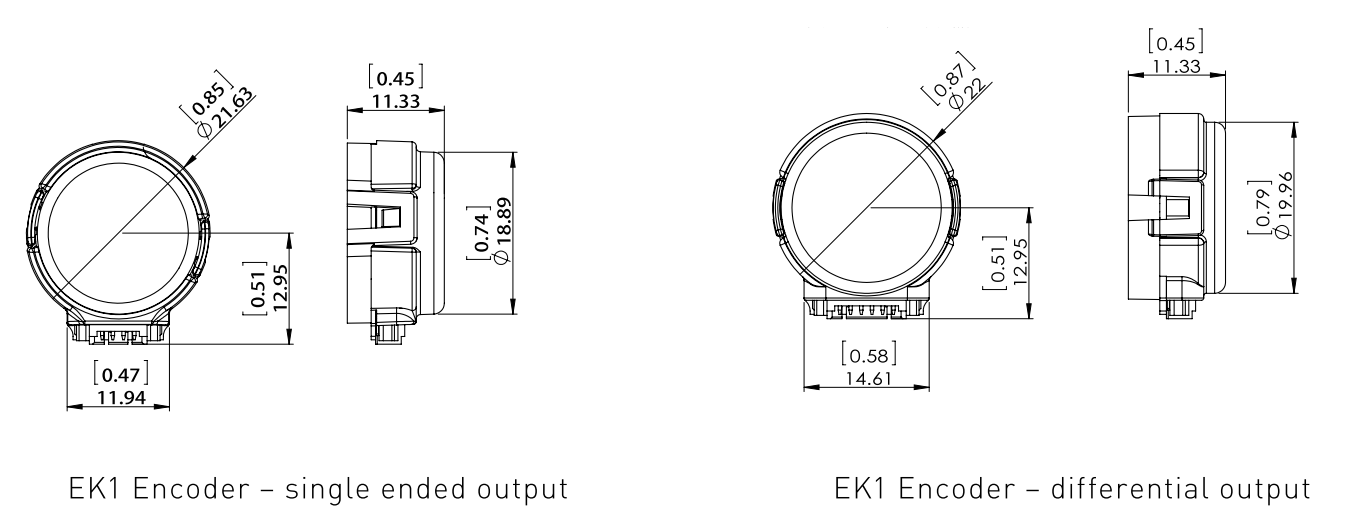

EK1 encoder option. Click to enlarge.

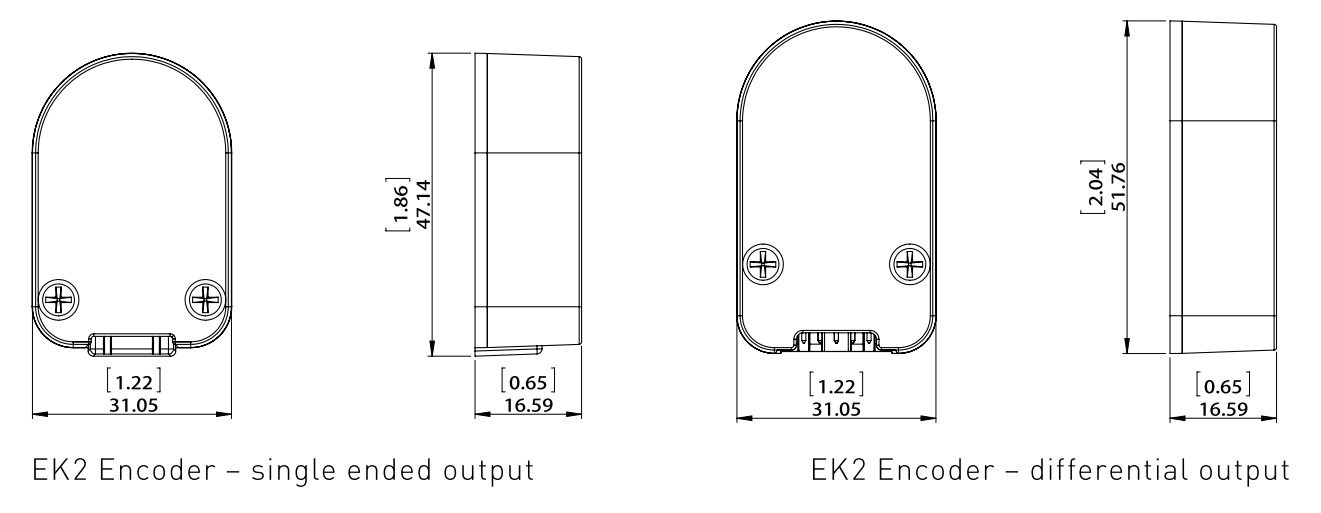

EK2 encoder option. Click to enlarge.
Customization Options
DINGS’ Motion USA customizes Stepper Linear Actuators, PM Stepper Linear Actuators, Slide Actuators, and Voice Coil Motors for OEM applications.
Motor Platform
NEMA size, stack size, motor type, voltage and current ratings, windings, insulation class, force, torque, and speed.
Linear Motion Design
Stroke length, lead screw selection, shaft configurations, end machining, lubrication, and actuator style.
Electrical Integration
Cabling, connectors, lead wire details, harness routing, winding adjustments, encoder options, and electrical requirements.
Environmental Requirements
IP ratings, coatings, clean room capabilities, lubrication requirements, and application-specific protection needs.
Need help customizing an IP54 rated linear actuator?
DINGS’ Motion USA can help review thrust, speed, IP rating needs, stroke length, lead screw selection, end machining, encoder options, cabling, and environmental requirements.
