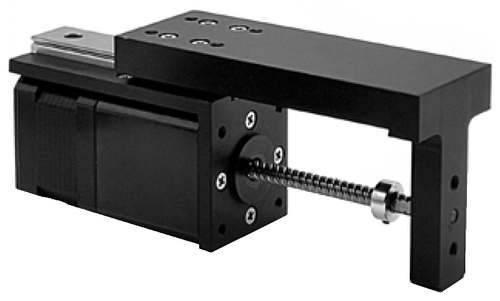

NEMA 17 Compact Ball Screw Linear Actuator
NEMA 17 stepper linear actuator with an integrated linear ball slide and carriage for compact, guided linear motion.
The integrated ball slide provides superior rigidity and robustness, helping the actuator handle high moment loads with precision and repeatability.
This NEMA 17 hybrid linear actuator provides continuous thrust up to 60 lbsF / 266 N and is a strong fit for medical devices, laboratory automation, and electronic assembly equipment.
Overview
Guided Linear Motion
Integrated carriage and linear ball slide support compact motion assemblies with improved rigidity.
Ball Screw Driven
Ball screw construction supports precise motion, repeatability, and efficient linear travel.
High Moment Load Support
The linear ball slide helps support demanding moment load requirements in OEM equipment.
Application Ready
Designed for medical devices, lab automation, and electronic assembly equipment.
Motor Characteristics
Swipe left or right to view the full table.
| Motor | Voltage (V) | Current (A) | Resistance (Ω) | Inductance (mH) | Lead Wire No. | Motor Length (mm) | Stroke Length (mm) |
|---|---|---|---|---|---|---|---|
| DS-DLG42-10 | 3.8 | 1.0 | 3.8 | 5.0 | 4 | 34.1 | 40 / 70 |
| DS-DLG42-15 | 2.78 | 1.5 | 1.85 | 2.2 | 4 | 34.1 | 40 / 70 |
Ball Screw Specifications
Swipe left or right to view the full table.
| Thread Direction | Shaft / Nut Material | Surface Hardness | Anti-Rust Treatment | Grade |
|---|---|---|---|---|
| Right | SCM415H | HRC58-62 | Anti-rust Oil | C7 |
| Ball Screw Type | Ball Size | Number of Thread | Shaft Root Diameter | Number of Circuit |
|---|---|---|---|---|
| 0801 | Ø0.8 | 1 | Ø7.3 | 3.7x1 |
| 0802 | Ø1.5875 | 1 | Ø6.6 | 3.7x1 |
| 0802.5 | Ø1.5875 | 1 | Ø6.3 | 2.7x1 |
| 0805 | Ø1.5875 | 1 | Ø6.6 | 2.7x1 |
| 0808 | Ø1.5875 | 2 | Ø6.7 | 1.6x1 |
| 0810 | Ø1.5875 | 2 | Ø6.7 | 1.6x1 |
| 0812 | Ø1.5875 | 2 | Ø6.7 | 1.6x1 |
Nut Size Data
Swipe left or right to view the full table.
| Nut Size | A | B | C | D | H | W | X | E | Position Accuracy | Total Run Out | Axial Play | Dynamic Load (N) | Static Load (N) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0801 | 29 | 4 | 17 | 16 | 18 | 23 | 3.4 | - | ±0.05 | 0.12 | 0.02 | 780 | 1650 |
| 0802 | 37 | 5 | 24 | 20 | 22 | 29 | 4.5 | - | ±0.05 | 0.12 | 0.02 | 2400 | 4100 |
| 0802.5 | 29 | 4 | 16 | 16 | 18 | 23 | 3.4 | - | ±0.05 | 0.12 | 0.02 | 1850 | 3000 |
| 0805 | 31 | 4 | 28 | 18 | 20 | 25 | 3.4 | - | ±0.05 | 0.12 | 0.02 | 1850 | 3000 |
| 0808 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | 0.02 | 2200 | 3800 |
| 0810 | 31 | 4 | 20 | 18 | 20 | 25 | 3.4 | 7 | ±0.05 | 0.12 | 0.02 | 2200 | 3800 |
| 0812 | 31 | 4 | 24 | 18 | 20 | 25 | 3.4 | 6 | ±0.05 | 0.12 | 0.02 | 2200 | 3800 |

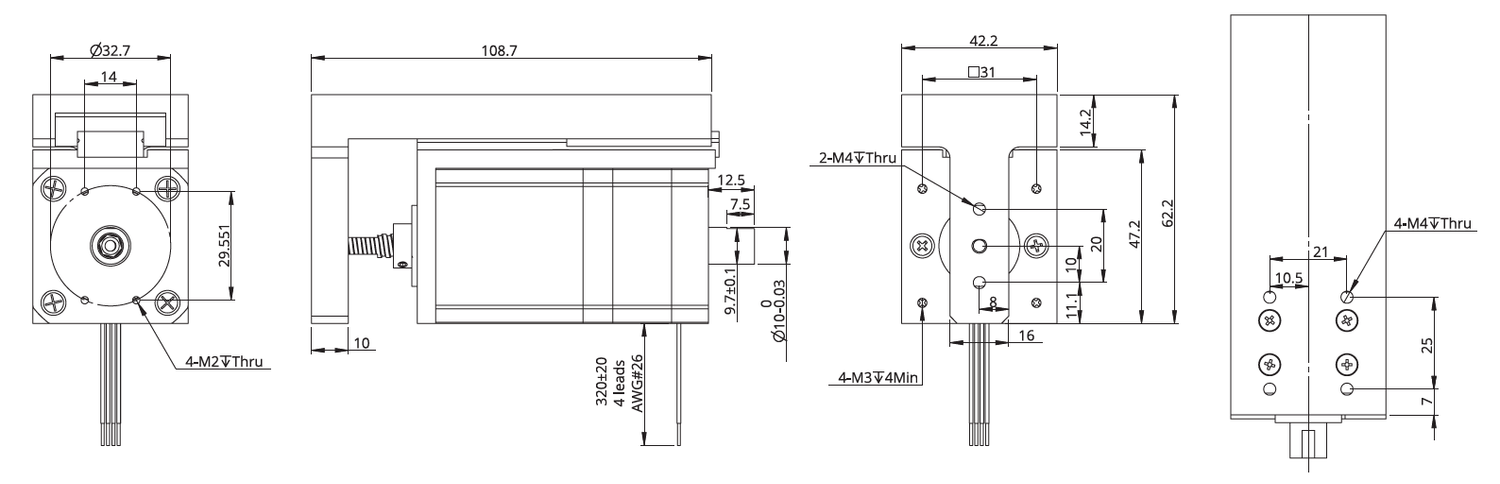

Dimensional Drawing

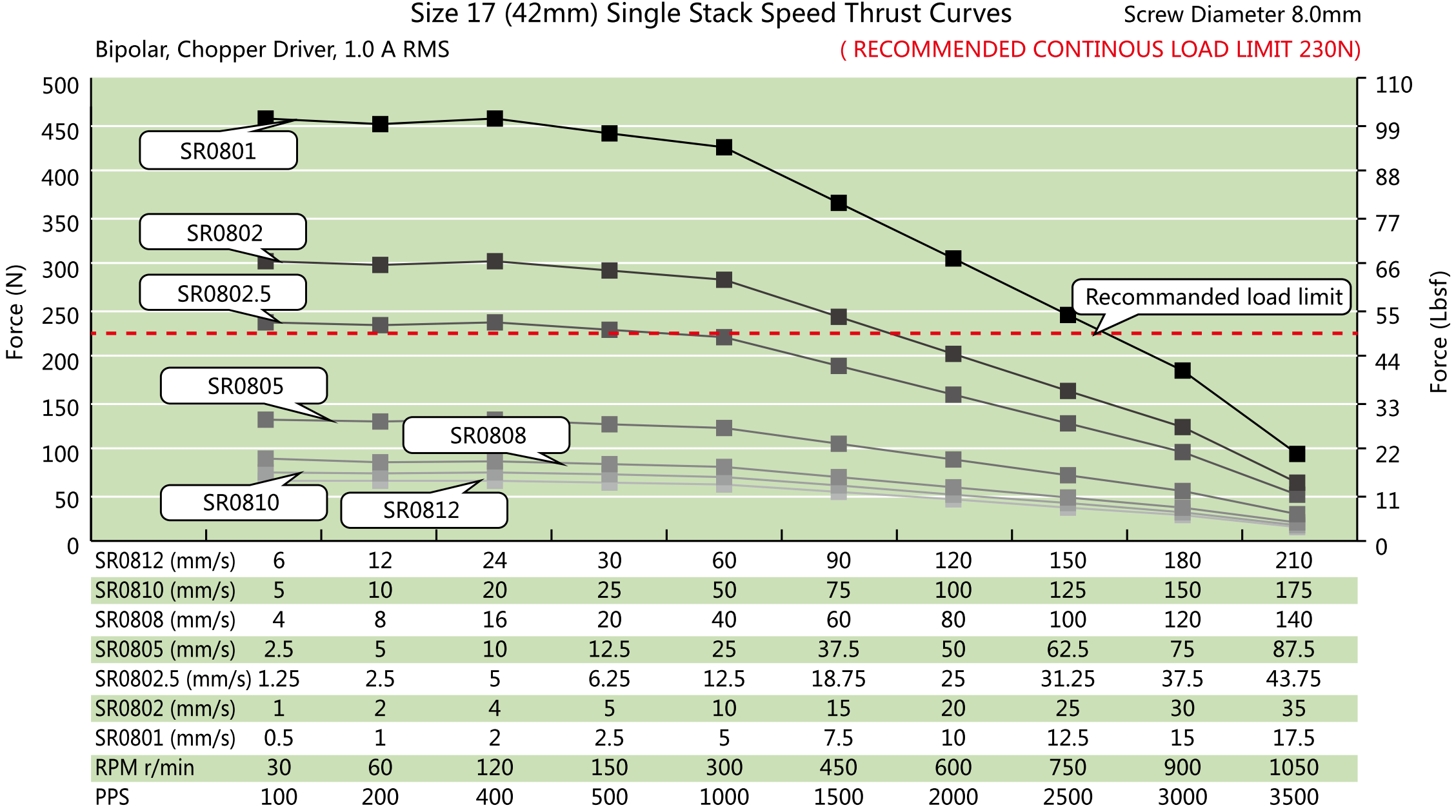

Speed-Thrust Curves
Wiring Diagram
Customization Options
Encoder Feedback
Encoders are available upon request for applications that require position feedback.
Stroke & Travel Review
Review 40 mm or 70 mm stroke options, travel requirements, and actuator packaging with the DINGS’ Motion USA team.
Lead Wire & Connector Options
Customize wire length, connector type, cable routing, or harness requirements for your machine build.
Application Engineering
Review thrust, moment load, speed, duty cycle, and mounting requirements for your OEM system.
Downloads
Need help selecting or customizing a NEMA 17 compact ball screw linear actuator?
DINGS’ Motion USA can help evaluate thrust, speed, moment load, travel length, feedback options, and custom mechanical requirements for your application.
