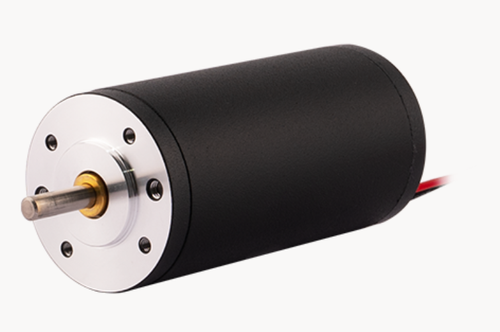

42 mm Brush DC Motor
The 42ZYTC85-1 brushed DC motor is a compact 24V motor designed for applications requiring reliable rotary motion, stable speed output, and simple DC motor control.
This motor delivers 57 mN·m rated torque, 19 W rated power, and rated speed up to 3,150 RPM.
Motor Characteristics
Swipe left or right to view the full table.
| Specification | Unit | 42ZYTC85-1 |
|---|---|---|
| Rated Voltage | V | 24 |
| Rated Torque | mN·m | 57 |
| Rated Speed | RPM | 3150 |
| Rated Current | A | 1.45 |
| No-Load Speed | RPM | 4000 |
| No-Load Current | A | 0.3 |
| Rated Power | W | 19 |
| Stall Torque | mN·m | 256 |
| Stall Current | A | 5.5 |
| Torque Constant | mNm/A | 64.5 |
| Back-EMF Constant | V/Krpm | 6.7 |
| Terminal Resistance | Ω | 4.65 |
| Terminal Inductance | mH | 3 |
| Rotor Inertia | g·cm² | 110 |
| Starting Torque | mN·m | 20 |
| Noise | dB | <50 |
| Life Span | H | >2500 |
| Insulation Resistance | - | 100M Ω / 250V |
| Duty Cycle | - | S1 |
| Motor Weight | kg | 0.43 |
Dimensional Drawing
Available Options
Precision Planetary Gearbox
Gearbox integration can help reduce speed, increase output torque, and support compact motion assemblies.
Silent Gearbox
Low-noise gearbox options are available for applications where smooth and quiet operation is important.
Linear Actuator Design
This motor can be customized into rotary or linear motion assemblies depending on the application.
Application Review
Work with DINGS’ Motion USA to review torque, speed, duty cycle, gearbox ratio, and packaging requirements.
Customization Options
Shaft Modifications
Customize shaft length, flats, diameter, or output features for the mechanical interface.
Lead Wire & Connector Options
Modify wire length, connector type, cable routing, or harness details for easier installation.
Voltage & Winding Review
Review motor performance around required voltage, current, speed, and torque needs.
Mounting Features
Custom mounting or housing features may be reviewed for OEM system integration.
Downloads
Need help selecting or customizing a 42 mm brushed DC motor?
DINGS’ Motion USA can help evaluate rated torque, speed, voltage, gearbox options, duty cycle, and custom mechanical requirements for your application.
